1. Preface
1. Goals
2. Method
3. Differences
4. What's missing
2. Introduction
3. Programming as Communication
1. Key concepts
2. Story
3. Operational world view
4. Functional world view
5. Object-oriented simulation world view
6. Supporting examples
4. A World of Objects
1. Key concepts
2. Introduction
3. From Our Language to Computer Language
4. Naming Things
5. Simple objects
6. Some shapes.
7. Text Strings
8. A Collection.
9. The Interpreter
10. Patterns we've learned
5. Expressions, Types, Messages
1. Key concepts
2. Story
3. Expressions and arithmetic operators
4. Arithmetic operators
5. Types: Kinds of things
6. Errors: Syntactic and Semantic
7. Sending information with messages
8. Doing a series of things
9. Input and Output
10. Patterns we've refined
6. Defining Simple Objects
1. Key concepts
2. Introduction
3. Objects as Records
7. Objects that Do Things
1. Key concepts
2. Introduction
3. Simple Methods
4. Methods with Parameters
5. Methods that return values
8. Compiling Java Classes
1. Key concepts
2. Compiling versus Interpreting
3. The Development Process and its Tools
9. Object Wrapup
1. Key concepts
2. Introduction
3. Constructors
4. Rounding out the interface
5. Information Hiding
6. Documenting the Interface
10. Understanding How Methods Work
1. Key concepts
2. Substitution
3. Control Flow
4. Drawing Pictures
11. Making Choices
1. Key concepts
2. Introduction
3. Back to the BankAccount
12. Analysis and Design
1. Key concepts
2. Introduction
3. The Lifecycle
4. An Extended Example
13. Reasoning about Programs
1. Key concepts
2. Story
14. Introduction to Collections
1. Key concepts
2. Introduction
3. An Ordered Collection: ArrayList
4. Rounding out the Music domain: The CompactDisc class
5. Casting
6. An Unordered Collection: HashSet
7. An Unordered Collection: HashMap
15. Introduction to Iteration
1. Key Concepts
2. Introduction
3. The for loop
4. The while loop
16. Building a Software System
1. Key concepts
2. Introduction
3. The Banking Domain: Analysis
4. Wrapper Objects
5. The User Interface
6. Driving the interface
7. What's missing
8. The Model-View-Controller Pattern
17. Iterating Over Collections
1. Key concepts
2. Introduction
3. Ordered Collections
4. Unordered Collections: The Easy Way
5. Iteration Abstracted: an Iterator
6. Common Idioms
18. Arrays
1. Key concepts
2. Introduction
3. Creating Arrays
4. Indexed Access
5. Iterating Over Arrays
6. Supporting examples
19. Using Arrays
1. Key concepts
2. Motivation
3. Building our own (simple) ArrayList
20. Multidimensional Arrays
1. Key concepts
2. Introduction
3. Creating a 2D Array
4. Supporting examples
21. Exceptions
1. Key concepts
2. Introduction
3. One approach: Error codes
4. A Better Approach: Exceptions
5. Handling Exceptions
6. Class Design Issues
22. Using DrJava
1. Key concepts
2. Introduction
3. Download
4. Getting Started: The Interpreter
5. The Compiler
23. Exercises
1. Introduction
2. Expressions, Objects, Classes, Messages
3. Defining Simple Classes
4. Conditionals and Iteration
5. Building a System

1. Preface

Goals

Method

Whether or not we agree with this particular ontology and epistemology, we cannot deny that it represents the dominant manner by which computer scientists in particular, and Western society in general, views the world, organizes systems of information, understands nature, and so on. Because it is so deeply ingrained in our cultural tradition, we feel that the instructor's job is to show their students that they are already quite practiced at using the object-oriented world view. In other words, most students are already quite good at thinking about the world in an object-oriented way, they just don't know it. To this end, we appeal to the student's intuitions about how they understand and talk about the world.

We believe in stimulating not just the symbolic - but also the enactive and iconic - reasoning abilities of the student. Like crafts such as carpentry, we find that the activity of programming is highly enactive and pattern-driven. To this end, we encourage a learning-by-doing approach, immersed in rich example domains and supported by powerful patterns. We engage the student's iconic reasoning abilities by encouraging them to draw pictures. Drawing pictures of the relationships between things is to object-oriented programming what procedural decomposition and flow-charting was to imperative programming. It is the meat and potatoes of understanding, designing, and implementing a system.

Finally, we avoid showing students the wrong way to solve a problem, to the extent possible. Experience has shown us that beginning programmers are easily imprinted with less-than-ideal approaches to problem solving and design. We prefer students to learn things the right way, rather than unlearn things learned the wrong way.

Differences

Second, the book emphasizes a data-driven approach to program design rather than the control-driven one that has traditionally dominated introductory texts. The latter approach was and is appropriate when the teaching languages are fundamentally imperative, such as Algol, Ada, Pascal, or C. However, large-scale object oriented systems, and indeed, object-oriented analysis and design shift the focus to understanding and designing the relationships amongst objects in an approriate manner. Consequently, the emphasis on algorithms and their implementation is necessarily diminished. Instructors trained in a technology of a prior generation (and this includes the authors) must accept that algorithmic thinking is no longer the only valid approach to problem solving and implementation. In fact, it could be argued, that such a paradigm is in fact at odds with generating good object-oriented designs.

Third, the book is not detail, rule, or syntax obsessed. It does not attempt to be a language reference for the Java language. There is a place for rules and details, but a concept-driven introductory text is not one of them.

Fourth, the book focuses minimally on graphics and GUI programming. Somehow these language features seem to have entered the canon of introductory texts, especially those that use Java as their teaching language. While we agree that there are (a few) important concepts in this kind of programming, we do not feel that they belong in the core of an introductory text.

Finally, the text is largely decoupled from specific, nonstandard Java classes. While many texts are written in support or in tandem with a set of Java classes used to simplify common programming tasks such as graphics programming or input/output, we have made an effort to stay within the realm of standard Java classes to the extent possible. We wish to decouple the principles and concepts from particular implementations thereof. Course-specific classes are certainly a good idea in most settings, but their details are best left to an appendix or lab manual.

What's missing

2. Introduction

This primer strives to teach the reader a way of being. The philosopher Ludwig Wittgenstein described a world consisting of many languages. These languages - called language games - differ markedly from the traditional conception of languages, which views them merely as a means of transmitting information. Wittgenstein saw languages primarily as a way of getting things done. He said that over the course of our lives we become masters of many language games. There are language games for bankers, carpenters, supermarkets, classrooms, doctor's offices, the family, and so on. Each of these languages has it's own rules and is useful for surviving and being successful in a special context: at work, at play, at love, and so on. To play a language game successfully is to understand. Put another way, to understand is to do the right thing under the rules of the game that is being played. And to play successfully implies that one knows much more than just the rules (grammar) and words of a given language, it means literally to express a certain way of being. He said:

Inspired by this quote we begin our journey in which we attempt to learn the language game of computer programming, and therein a new way of seeing the world -- a new way of being.

Programming requires learning a handful of fundamental concepts. These concepts can be expressed clearly, we believe, in short form. Many texts manage to make programming seem incredibly complicated. On some level, they are certainly correct. Becoming fluent in real programming languages such as Java, C++, or Smalltalk means becoming a master of many rules, details, and vocabulary words. However, at their core, all programming languages share just a few fundamental principles. Helping the student to learn and to deeply understand these principles should be the ultimate job of any text. We attempt to expose them with a minimum of clutter and distraction.

Furthermore, we believe that learning to program is done only in small parts by reading textbooks. Learning to program well perhaps shares more in common with learning to be a good writer or a good carpenter. Contrary to popular opinion, programming is more craft than science. This standard view of programming perhaps explains the mismatch between the typical programming text and the reality of programming. As computer scientists, we attempt to explain programming the way we might explain other concepts in the field. It is as if a linguist were to attempt to teach a child a language using the language of a linguist. The child, not versed in the linguist's language game, would have no common ground for communicating with her teacher and hence would hear only non-sense.

Becoming a skilled programmer takes years of experience. Teaching programmers would perhaps be better done in a master-apprentice oriented approach similar to that used in other skilled crafts. In a short introductory course, however, we can at best hope to demonstrate and encourage the reader to practice the fundamental skills and techniques, identify the essential patterns, and inspire them to adopt a critical, inquisitive, experimental approach to learning that will assist the student in their future studies as well as life in general.

By viewing programming as craft, we are also inspired to teach by example, appeal to intuition, and to reinforce lessons through practice. Hence, this book suggests spending a lot more time doing than reading. Learning-by-doing involves more parts of the brain and the body in the learning process. Programming - as a skill - involves not only strong symbolic reasoning abilities, but a powerful imagination, good design intuition, deep experience, and even an eye for beauty. These latter qualities cannot simply be explained in a textbook. They must be experienced, witnessed, and lived before they can become part of the makeup of any skilled programmer.

Programming does not exist in isolation from the rest of the world. Programming is a profoundly social activity. Only through an understanding the social aspects related to building large-scale software systems are we be able to build truly great, usable software. Programming technologies, such as the languages we use, are deeply rooted in our cultural tradition. By understanding the underlying history, philosophy, and ideology of the technologies that we use, develop, and deploy we can become more sensitive to their cultural impact. It is never too early for a technologist to begin learning about these kinds of issues, which have been traditionally relegated at worst to other, more marginalized departments on the university campus, or at best to the dusty corners of the course syllabus. This work attempts to integrate the social and cultural context of our technologies into the material it presents.

This book is organized in a few dozen short "lessons." Each lesson seeks to demonstrate, teach, or explain a key point or concept of programming. Each lesson, like a short story, attempts to digestible in a single sitting. The lessons do not attempt to explain language features, syntax, rules, and so on in all of their gory detail. No lesson should be read without doing the associated exercises, or experimenting with the presented examples. We guarantee that you will learn next to nothing if you only read this book. Only by typing in, experimenting, imagining, drawing pictures, and learning-by-doing will you get value out of this text. Good luck.

3. Programming as Communication

Key concepts

1. Programming as communication
2. Programs as communication artifacts
3. The difference between "reading" and "understanding"
4. The three world views: functional, operational, object-oriented simulation

Story

Humans are incredibly good at "understanding" language, but very bad at "reading". For example, most people would have trouble reading the following:

I s ou r C hi l d r en le a r n i n g?

However, once you stare at the text long enough to realize that it asks, "Is our children learning?" you have no difficulty in understanding its meaning. Interestingly, despite the fact that it contains a grammar error, you still understand its meaning. Computers, on the other hand, are very good at reading. A machine would have no difficulty in picking out the sequence of letters in the above question, no matter how poorly they might be formatted. However, computers are extremely sensitive to grammatical errors, and would have great difficulty "understanding" the meaning of the above question. To communicate with a machine, we need to be incredibly precise in "meaning", but can be messy in our "writing." However, since humans will read the code as well, we need to write clearly too.

We'll rely heavily on three important metaphors when interpreting programs: a program as a precise set of instructions, programs as executable math, programs as simulation.

Operational world view

Traditionally, language has been viewed merely as a means of transferring information between two or more communicating parties. While language is certainly employed to transfer information, it has other uses too. Another view considers language as a means of effecting actions. Think about the following statement:

This action-oriented view of language is very applicable to computer programs. Programs are not merely about transferring information, rather, they command, instruct, cause things to happen. The program is a sequence of utterances that cause the computer to undertake one action or another.

Perhaps the best analogy is that of giving directions. Directions provide you with a sequence of steps, which, if you follow them, will get you to your destination. We call such a set of instructions an algorithm. Of course, the directions have to have a sufficient level of detail and precision to be meaningful to you. The sort of precision and logical thinking required to give a good set of instructions are skills you will cultivate over the course of your study.

Consider giving directions to the campus post office to someone familiar with the campus geography, such as a veteran student. Compare this to giving directions to a tourist. To the student, you might say:

When talking to the student, you can leave out many details, which you would have to perhaps explain to the tourist. Programming languages also allow us to express concepts at a variety of levels of abstraction. In fact, a large part of writing great programs consists of either leveraging existing abstractions or implementing your own abstractions appropriate to the task at hand. By implementing your own abstractions, you are in a way introducing new words (and their meanings) into the language, thereby allowing you to express instructions as a higher level of abstraction. Programming languages themselves may differ in the fundamental abstractions they present to the programmer. Java, for instance, tends to provide the programmer with higher-level abstractions than does, say, C.

Functional world view

Another powerful way to think about programs or pieces of programs is as a set of mathematical expressions that are evaluated to generate or calculate some sort of interesting result. For instance the following equation:

Object-oriented simulation world view

In a way, this ability to construct simulations of imaginary worlds is one of the great things about writing computer programs. In many situations, it is much easier to build (and tear down, and experiment with) a simulation than it is to build the real thing. Programs are only plastic to an extent, however. Eventually, a program itself may become as complicated and hard to manipulate as real-world entities, because of the huge number of interactions between various pieces of the system. Remodeling the program becomes no simpler no simpler and no less without consequence than say, razing whole neighborhoods to build freeways. Finally, large-scale software systems do not and can not exist independently of the people who design, produce, test, and maintain them. Gross changes to the program structure will inevitably impact the social structure which has been erected to support it.

Becoming a good programmer requires (amongst other things) the ability to think and express oneself in each of the above ways. Conceiving of the problem domain and breaking it down into manageable pieces often relies upon the object-oriented simulation world view, while handling the particulars of how the pieces of the program will actually behave requires strong operational and mathematical thinking skills.

4. A World of Objects

Key concepts

1. Objects: the things that inhabit our world
2. Naming objects
3. Creating objects
4. Sending messages to objects
5. The interpreter: our first tool

Introduction

What's an object? The answer is simple, really. Objects in Java are very similar to the things we think of as objects: chairs, tables, cars, people, students, files, desks, drawers, money, bank accounts, and so on. Many people argue that object-oriented programming is more difficult for the beginning programmer to master, because students must understand the supposedly difficult concepts of the "object." However, we take the opposite view. Thinking about objects in computer programs is as natural as thinking about objects in the real world. It is something that we as individuals have done since a very young age. Furthermore, thinking about the world as consisting of objects is deeply rooted in the Western cultural tradition. Many of the ideas first explored by Plato and Aristotle over two thousand years ago have manifested themselves today in the technology of object-oriented programming.

Objects often (usually) are made up of other objects. In fact, very few objects are primitive -- most objects consist of other objects. Humans have organs; organs have tissues; tissues have cells; cells have DNA, proteins, mitochondria, and so on. Offices have desks; desks have drawers; drawers can have contents inside of them. Composition of objects is a central theme that we'll revisit throughout this study.

Let's take a detour and enrich our understanding of language by looking at how we often use it to describe the world around us. While this discussion may seem as if it couldn't be further from learning how to program a computer, it turns out to provide the fundamental basis for nearly everything we'll talk about for the rest of our study. Why? Because building an object-oriented computer program is all about using a simple language (such as Java, which is much simpler and less powerful than our own, natural language) to define a system of things and their relationships. We shall see that it is not at all radically different from the way we use language every day.

Things/Objects

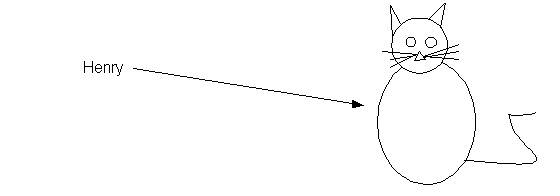

Imagine that I have a pet cat, named "Henry". Henry is a real, physical being, with certain qualities, such as age, weight, size, and so on. Henry is composed of other things, such as muscles, organs, and blood. Henry is also an active entity: he can consume food, make sounds, and walk about. My neighbor may also have a pet cat, named "Natasha". Natasha and Henry are both cats, but they are distinct entities. It seems somehow degrading to say that both Henry and Natasha are objects, but we can view them as such.

Names and Meaning

The name "Henry", at least in the context of my household, refers to the being or thing that inhabits my home, that walks on four legs, meows when it is hungry and so on. We say that the meaning of the word "Henry" is the object that it refers to, namely that being which inhabits my home. The word or name "Natasha" refers, on the other hand, to a similar being that inhabits my neighbor's home. The meaning of a word is the object it refers to. In language, we may have multiple words that refer to the same object. For instance, the words "George" and "President" are words that refer to the same object -- the president of the United States at the time of this writing.

Concepts

Now let's think about the word "cat" for a moment. What is the meaning of that word? If our view of meaning is that the meaning of a word is the thing that it refers to, then we must ask, What does the word "cat" refer to? It certainly doesn't refer (when used in the general sense) to any particular cat. Instead, it seems to refer to the set of qualities that all cats have in common. It refers to the collection of knowlege that we have about Natasha, Henry, and all other cats. The word "cat" refers to the concept of cat, rather than any particular cat. A concept is a definition or a description of a set of objects. Concepts exist only in our minds -- they do not have a real, physical presence.

Must objects be physical things?

At first glance, it appears that all Objects (as opposed to Concepts) have real, physical qualities. Think about chairs, cars, tables, people. These are all objects that inhabit our world, and they are all physical things. Does this statement hold true for all objects? To answer this question, think about the number seven. Is it an object, concept, or something else altogether? Ask yourself what does the word "seven" mean? What sort of thing does it refer to? It refers to a property, a quality and nothing more. It refers to a property that is shared by Snow White's Dwarves, the days of the week, and the Deadly Sins. The number seven refers to an object as surely as the name "Henry" refers to the object that is my cat. It just so happens, however, that this particular object is a pure abstraction. It exists only in our minds. Seven is a quantity, a number. It is a particular instantiation of the concept "Number" or "Quantity". Put another way, the relationship between "Henry" and "Cat" is exactly the same as that between "Seven" and "Number". Henry and Seven are names that we have given to particular instances of a given concept. The important implication is that objects do not necessarily have to be concrete, physical things. While it is easiest for us to conceive of objects that have real, physical properities we must accept that there are objects that exist only in our minds, such as numbers.

Are Concepts Objects?

The answer to this question must be yes, because concepts can be named, talked about, described, and manipulated in (almost) the same way that real, physical objects can. Of course, we can't measure how much the concept "Cat" weighs, or see it's color, but you and I can have a conversation about cats (in general), and we can refine our understanding of them (perhaps by distinguishing between house cats and wild cats). This ability to create, learn, and manipulate concepts in our minds is a faculty that makes us distinctly human.

It is true that there is a difference between concepts and objects -- concepts are special sorts of objects that have descriptive and generative powers. They describe a set of objects that all share a certain makeup and qualities. They can also be used to generate new objects. It's easiest to see this with respect to Numbers. Understanding the concept of Number allows us, for instance, to generate all kinds of numbers, like 7, 42, or 3.1415. These differences do not mean that concepts themselves are not objects.

A Brain Teaser

If concepts are objects, and all objects are instances of a particular concept, then what concept are concepts themselves instances of?

From Our Language to Computer Language

Java is a language which is far less descriptive, yet much more formal than our own language. That is, because we use Java to communicate with a machine, we must be totally explicit in what we say, and we must follow certain rules for how we say things. Java allows us, above all, to define Concepts, create Objects that are instances of those Concepts, and manipulate those Objects.

The terminology used in Java differs slightly from that which we have introduced above. The term object is identical; it is a thing. In Java, we use the term class instead of the word concept though. It's easy to remember this word if you remember that a concept describes a class (or set) of things. Our concept for "car" describes a set of things that are all cars. We will also use the word type as a synonym for class. There is actually a technical difference between the two terms, but for now we'll treat them as the same. Finally, just as we think of many real-world objects as being able to perform activities, Java objects can be "active" as well. In Java, if an object knows how to perform a certain activity (for instance, to drive a car) we say that it has a method. We can ask an object to perform an activity for us by sending it a message.

Note that in Java, all objects can have methods, that is, they may know how to perform certain actions for us. You should think of every object in Java as being "animated" or "alive". This ability to animate objects is what gives Java a special power: we can use it to define classes of objects, create objects of those classes, and finally ask those objects to do things for us. In Java everything is make-believe. We may animate everything. In animating all of our objects, we give them life. Part of being a good Java programmer is to imagine a world in which all objects are "smart", in which all objects can perform tasks on our behalf. Leaving behind the constraints of real-world limitations, and entering this make-believe world of animated objects allows us to create powerful systems of intercommunicating, interacting objects.

We will now proceed to re-introduce the fundamental concepts we've discussed above, but in the context of the Java language. At each step, it's important to think about the ideas we've discussed above. Think about how you consider objects, concepts, names, and so on in the real world, using real language. If you can do this, you will win most of the battle of becomming a good programmer. To be a good programmer is to know what you want to say. Once you know that, figuring out how to say it is almost mechanical. Many beginning programmers become obsessed or overwhelmed with how to say certain things in Java, when they haven't really even figured out what they want to be saying. You are already good at seeing the world in terms of objects, names, activities, and concepts. Leverage that skill as you step into a new way of expressing your ideas.

Naming Things

The meaning of a word is the thing that it refers to. It's OK to have two names that mean the same thing. For instance, I might also call my cat "Beast" sometimes, which would result in this picture:

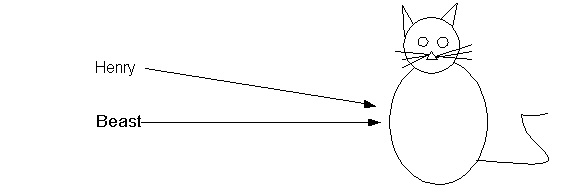

Notice that in this particular context, we have two names, "Henry" and "Beast" that both refer to the same object, my cat.

Simple objects

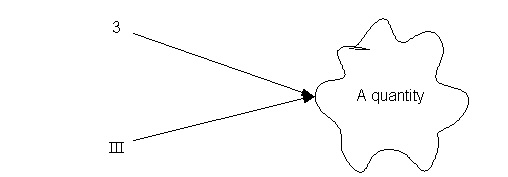

Notice that both the names indicate the same object, which is a quantity. Pretty much all of your intuitions and understanding of numbers apply equally in the Java world. In Java we may express numbers literally and give interesting names to them:

int    score = 59;
double todaysTemperature = 67.4;

Throughout this study, we'll draw pictures to help understand and express the relationships between the things in our programs. Let's draw one:

The above picture shows the name "score" as referencing or denoting (with the arrow) a thing, which in this case is a quantity. Above, we represented a quantity as a cloud (or a blob), to differentiate it from its name (in that example, "3" or "III"). We could have used a blob in this picture as well, but they're not terribly descriptive. So we'll just represent quantities by their common names -- in this case, 59. The way to read a picture like the above is: "The name 'score' refers to the quantity (or number) 59."

The above example also introduces us to our first pattern, which is a pattern for naming things. Sometimes, we'll also call this binding a name to a value.

<The kind of thing> <the name> = <the thing we're naming>;

Notice that Java is sensitive to case when we write names. In other words, the name score and Score are not the same name in Java. Furthermore, Java imposes some restrictions on the legal letters in our names, which we also call identifiers sometimes. The rule is essentially that names must begin with either a '_' or a lower or upper case 'a' through 'z' character. The rest of the letters can consist of lower and upper case 'a' through 'z', '0' through '9' and '_'.

Another useful simple object is the char, which is used to represent individual characters, such as 'b'. Here are a few examples of characters in use:

char letterGrade = 'A';
char middleInitial = 'R';
char section = 'b';

boolean rainingInSeattle = true;
boolean rainingInLosAngeles = false;

Some shapes.

Circle theMoon = new Circle(100, 200, 25);
Rectangle aBox = new Rectangle(30, 40, 10, 20);

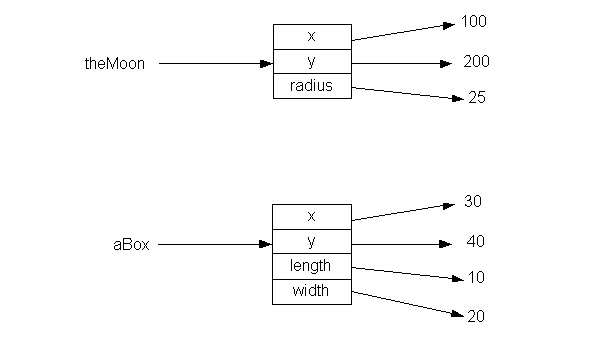

Lets draw some pictures of our new objects:

theMoon +------>      x +------> 100
                      y +------> 200
                 radius +------> 25

aBox    +------>       x +------> 30
                       y +------> 40
                   width +------> 10
                  height +------> 20

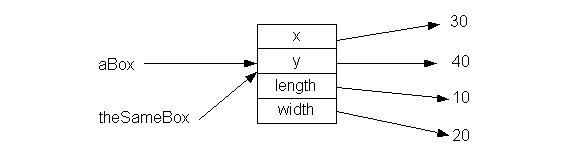

Let's look at naming in a little more detail. We say that a name refers to an object. For this reason, we can have multiple names that refer to the same object. For instance, the names "Mom" and "Ellen" may both refer to the same person, in this case, my mother. Let's look at a Java example:

Rectangle aBox = new Rectangle(30, 40, 10, 20);
Rectangle theSameBox = aBox;

Finally, we can also send some messages to these objects:


int area = theMoon.area();
aBox.move(10, 15);

<object-name>.<message-name>(<some information>);

Bob, eat the pizza.

Bob [subject] eat [verb] the pizza [object]

Bob.eat(pizza);

Text Strings

String name = "Billy";

int lengthOfName = name.length();
String upperCaseName = name.toUpperCase();
String newName = name.replace('B', 'W');

A Collection.

ArrayList classList = new ArrayList();
classList.add("Bob");
classList.add("Ellen");
classList.add("Johanna");

The Interpreter

prompt> String name = "John";
prompt> name
"John"
prompt> String upperName = name.toUpperCase();
prompt> upperName
"JOHN"
prompt> name.length() + 10
14

Patterns we've learned

1. Naming
2. Sending messages
3. Creating new objects

5. Expressions, Types, Messages

Key concepts

1. Expressions and evaluation
2. Statements, sequences of statements.
3. Arithmetic operators
4. Kinds (types) of things
5. Errors: syntax, semantic, pragmatic
6. Argument evaluation
7. Method interface
8. Input and Output

Story

Expressions and arithmetic operators

Circle theBall = new Circle(10, 20, 30);

1. a literal representation of an object
2. the generation of a new object (using new)
3. the name of an object
4. the result of sending a message to an object
5. combinations of the above

42
"hello"
aSquare
aSquare.width()
new Square(10, 20)

We can now slightly formalize our naming pattern:

<The kind of thing> <the name> = <expression>;

Arithmetic operators

Java provides us with mathematical operators that allow us to write mathematical expressions. The basic operators are:

Symbol	Meaning	Example Expression	Value if y is 11
+	add	y + 5	16
-	subtract	y - 5	6
*	multiply	y * 5	55
/	divide	y / 5	2
%	remainder	y % 5	1

We sometimes call the operators in the above table binary operators because they operate upon two subexpressions. What if I want to negate a value? In Java you can use the minus symbol in a unary manner to do this, just like in regular math:


int q = x * - y;

int y = 4;
int x = 2;
int m = x + y * 8;       // Q: What's the value of m? A: 34
int n = (x + y) * 8;     // Q: What's the value of n? A: 48

Note that division between integers behaves somewhat differently than you might expect. If I ask you, "What is 5 divided by 2?", you'll correctly answer "Two and a half". But now, let's look at the following Java fragment:

int x = 5;
int y = x / 2;    // Q: What's the value of y?  A: 2

What if we want to know the remainder? Java provides us with an operator that can answer this question for us. It's called the remainder or sometimes the modulus (or just mod for short) operator. Here's an example:

int x = 1113;
int y = x / 200;             // Q: What's the value of y? A: 5
int theRemainder = x % 200;  // Q: What's the value of theRemainder?

Dividend	Divisor	Quotient (Dividend / Divisor)	Remainder (Dividend % Divisor)
5	2	2	1
13	10	1	3
13	13	1	0
0	13	0	0

Depending on the scenario, it may be appropriate to use a different kind of number that can represent fractions, such as the double.

double x = 5;
double y = x / 2;  // Q: What's the value of y?  A: 2.5

int x = 5;
double y = x / 2;  // Q: What's the value of y?

Types: Kinds of things

Let's look at a few expressions again. Notice that you can tell me what "kind" of thing each of these expressions evaluates to.

"hello"
aSquare
aSquare.width()
aSquare.length() * 23

String greeting = "hello";

It doesn't make much sense to say something like: "Her age is green." In that sentence there's a mismatch between "green" and "age". What is it? When we think of age, we think it should be a quantity, a number. But "green" is a color. They're not the same "kind" of thing, so it seems like non-sense. From now on, we'll use the term type to mean "kind of thing." Java is very picky about this kind of non-sense (we'll call them type mismatches) and will catch us on it every time. For instance, Java will gripe about the following:

String greeting = 7;
int someNumber = "hello";

Errors: Syntactic and Semantic

1. Is our children learning?
2. We ought to make the pie higher.
3. He can't take the high horse and then claim the low road.

int x 7;                        // Oops: no = symbol
int velocity = distance / ;     // Oops: / requires two values to divide
String foo = "hello" 56;        // Oops: "hello" 56 is not a String

String myName = 7;            // myName is said to be a String, but 7 isn't
aSquare.move("hello");        // assume the move method wants an integer!
int area = 17 * "width";      // Can't multiply an int by a String

String xyz = "Bill Murray";   // xyz isn't a good name
int x=43;int pqrz=x*x/23;     // Horizontal and vertical spacing poor

Sending information with messages

Recall our basic pattern for sending a message:

<object-name>.<message-name>(<some information>);

aRectangle.move(10, 20);

aRectangle.move("hello", 20);
aRectangle.move(35);

While we can often intuit what kind of arguments are acceptable, to really figure out what kinds of arguments are acceptable, we need to look at the interface (or sometimes signature)of the method. An interface defines the the name of the method itself, the number and types of arguments required by the method, and the type of object returned by the method, if any. An interface provides us with the appropriate syntax for invoking it. Often, the interface will also consist of some commentary which describes the behavior or semantics of the method. Here is an example, for the move and area methods for Rectangles:

// Change the position of the shape by the given deltas.
//  parameters:
//    deltaX: the X distance to move
//    deltaY: the Y distance to move
void moveBy(int deltaX, int deltaY);

// Answer the area of the shape.
int area();

Before the message is sent, the expressions that represent the arguments are evaluated. Look at the following example:

aRectangle.move(10, aRectangle.width() / 2);

<object-name>.<message-name>(<expressions>);

where
  <expressions> is zero or more expressions depending on the
  interface of the method.

Doing a series of things

We often need to do things that require more than one step: baking a cake, washing our hair, changing the oil in the car. Java allows us to express this notion by stringing together statements. Think of each statement as a command to the machine. Each statement is executed, and when it's finished executing, the machine executes the next one. Let's string together some statements that get something interesting done.


int width = 20;
Rectangle square = new Rectangle(width, width);
square.move(35, 10);

int z=20;Rectangle square=new Rectangle(z,z);square.move(35, 10);

Input and Output

In today's computer systems, input typically comes from the keyboard and/or a pointing device called a mouse, and output goes to the computer screen. However, there are other unseen sources of input and destinations for output, such as files that hold data on disk drives, network devices that allow our computers to communicate with each other, and printers.

We'll hide many of the details of doing input for now, and imagine that we have a simple interface for performing input. Here is the interface for reading an integer. Reading other simple values occurs through a similar interface.

// Prompt the user and read and return an integer
// If they do not provide an integer, they are re-prompted.
// parameters:
//  prompt:  a String to display
int readInt(String prompt);

prompt> Input input = new Input();
prompt> int width = input.readInt("What is the width of the box?");
What is the width of the box?
8
prompt> int height = input.readInt("What is the height?");
What is the height?
hello
Not a valid integer, please try again.
4
prompt> int area = width * height;

Performing simple, textual output in Java is pretty simple, although the syntax may seem a little strange for now. The system provides us with a well-known object, called System.out that has the following simple interface.

// Print a textual representation of the given object,
// followed by a newline (carriage return)
// parameters:
//  o: any object to display
void println(Object o);

// Print a textual representation of the given object,
// without a trailing newline
// parameters:
//  o: any object
void print(Object o);

prompt> Rectangle r = new Rectangle(10, 20, 30, 40);
prompt> System.out.println(r)
[Rectangle: x=10, y=20, width=30, height=40]

Patterns we've refined

1. Naming
2. Sending messages
3. Creating new objects

6. Defining Simple Objects

Key concepts

1. Objects as records: aggregates of data
2. Classes vs. Objects
3. Initializing objects
4. Assignment

Introduction

Objects as Records

class BankAccount {
  int number;
  double balance;
  String name;
}

Remember, it's important to distinguish between classes and objects. When we analyze the world around us, we can identify concrete things, such as a desk, a dog, or a car. These things are concrete -- that is, they have properties that we can directly sense. However, there are less concrete things that we can conceive of as well, such as the concept of car. It's important to distinguish the concept of a car as being in some way different from a particular instance of a car (such as the car in your driveway). The concept of car seems to exist only in our mind, while an actual car exists as a physical object in the real world. Aristotle called the concept a universal and the actual physical thing a particular. Roughly speaking, this distinction between a universal and a particular is just the difference between class and object in Java. A class is a description of the qualities, behavior and implementation that a given set of objects have in common. Objects are instances of classes. They have concrete representations and behavior.

Here is the most basic pattern for a class definition:

class <class-name> {
  <instance variable declarations>
}

Just as my real-world bank account will have a different balance than yours (withdrawals from my account change my balance, not yours), two BankAccount objects we create in Java will have different balances. Let's create a BankAccount object:

BankAccount account = new BankAccount();

BankAccount account = new BankAccount();
account.balance = 100.25;
account.number = 1234;
account.name = "Bob";

Notice also that these statements assign new values to the names of the account -- they change the state of the bank account. In a way, we are rebinding the names to new values. In general, the pattern for an assignment looks like this:

<name> = <expression>

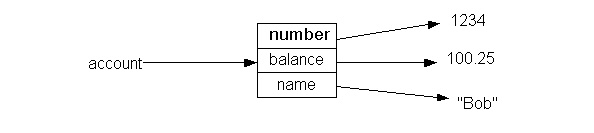

Let's draw a picture of the account at this point:

How would we deposit 15 dollars into our account? We can do so as follows:

double oldBalance = account.balance;
account.balance = oldBalance + 15.0;

account.balance = account.balance + 15.0;

7. Objects that Do Things

Key concepts

1. Simple methods
2. Methods with parameters
3. Methods that return values

Introduction

Simple Methods

BankAccount account = new BankAccount();
// set the values of its pieces:
account.balance = 100.25;
account.number = 1234;
account.name = "Bob";
account.balance = account.balance - 3.0;

With this division in mind, we don't necessarily want to show the client the inside of the BankAccount object. Why not? Because it violates the abstraction we want to develop. We don't want clients to have to know too much about the internal structure of a BankAccount. We don't want them to know not because it's a trade secret, but because not having to know about the internal structure frees them to think about BankAccounts at the appropriate level -- the abstract level. Maybe it's better if we give the responsibility for assessing the monthly fee to the BankAccount object itself. In this view, a BankAccount literally knows how to deduct a fee from its own balance.

Let's modify the BankAccount class by adding a single method to its definition:

class BankAccount {
  int number;
  double balance;
  String name;

  void assessCheckingFee() {
    this.balance = this.balance - 3.0;
  }
}

<return-type> <method-name> (<parameter-list>) {
  <body-statements>
}

class <class-name> {
  <instance variable declarations>
  <method definitions>
}

BankAccount account = new BankAccount();
// set the values of its pieces:
account.balance = 100.25;
account.number = 1234;
account.name = "Bob";

// now assess the checking fee:
account.assessCheckingFee();

At this point, only one real mystery about our assessCheckingFee method remains: what about that mysterious word, this? The word this is a special, implicitly defined name that refers to the object that is receiving the message. We use it to access, using the "dot" notation, the names that belong to the object that receives the message.

Methods with Parameters

account.balance = account.balance + 15.0;

account.deposit(15.0);

class BankAccount {
  int number;
  double balance;
  String name;

  void assessCheckingFee() {
    this.balance = this.balance - 3.0;
  }

  void deposit(double amount) {
    this.balance = this.balance + amount;
  }
}

Methods that return values

double euros = account.balanceInEuros();

class BankAccount {
  int number;
  double balance;
  String name;

  double balanceInEuros() {
    return this.balance * 1.13;
  }

  // other method definitions here
}

There is of course a problem with our method. Currency conversion rates change on a frequent basis, and we have hard-coded the conversion rate between Dollars and Euros into our method. A better solution is to further abstract our method, and parameterize it by the conversion rate. This also makes the method useful for converting into any currency, given that we know the conversion rate. Let's replace our old method with an improved one:

class BankAccount {
  int number;
  double balance;
  String name;

  double convertBalance(double foreignUnitsPerDollar) {
    return this.balance * foreignUnitsPerDollar;
  }

  // other method definitions here
}

double eurosPerDollar = 1.17;
double bahtPerDollar = 45.39;
double euros = account.convertBalance(eurosPerDollar);
double baht = account.convertBalance(bahtPerDollar);

8. Compiling Java Classes

Key concepts

1. Compiling versus Interpreting
2. Tools of the trade: editor, compiler, debugger

Compiling versus Interpreting

So far, we've seen one tool of the trade, which we've called the interpreter. This works well for testing out small chunks of code or experimenting with expressions. Many interpreters are unable to interpret class definitions, so we require a slightly different methodology. The programmer (you) type your class definition into a text file, using a text editor. At some point, you give your source code to another program called a compiler. The compiler reads your source code and translates it into a representation that is understandable by a machine.

Notice the difference between the interpreter we've been using and a compiler. The interpreter is just like a real language interpreter, who might interpret, sentence-by-sentence a conversation you are having with a speaker of another language. The compiler is more like a translator. Given a document (in our case, containing Java source code), the translator translates it from one language to another (in our case, a kind of machine language).

Getting your head around the difference between interpreted and compiled code is critical. When using the interpreter, you experience a more dynamic, interactive interaction with the Java language. You type a statement and you'll see the impact of that statement immediately. In the compiled world, you are writing statements that will not be executed until the program is actually run.

Imagine two ways of giving directions to a party. In the first way, your friend calls (on their cell phone) and wishes to be directed to the party. As you give them directions ("turn left on 65th Street") they react accordingly. You can continue in this manner until your friend reaches their destination. In the second way, you might write a sequence of directions down on a scrap of paper and give them to your friend, perhaps days prior to the party. On the day of the party, your friend will refer to the scrap of paper, and act according to its instructions. In programming, interpreting code is similar to the first way of giving directions; compiling code is similar to the second way.

The Development Process and its Tools

A programmer really does the following (at a minimum):

1. Edits her source code (using an editor)
2. Compiles her source code (using a compiler)
3. Possibly repeats steps 1 and 2 if there are syntax/semantic errors
4. Runs her program
5. Possibly (probably) goes back to step 1 to improve and/or fix the program.

Tool	Input	Output
Editor (e.g. Emacs)	Keystrokes and mouse input	A Java source file (e.g. MyCode.java)
Compiler (e.g. javac)	A Java source file (e.g. MyCode.java)	A Java class file (e.g. MyCode.class)
A Machine (e.g. java)	A Java class file (e.g. MyCode.class)	The result of your program!

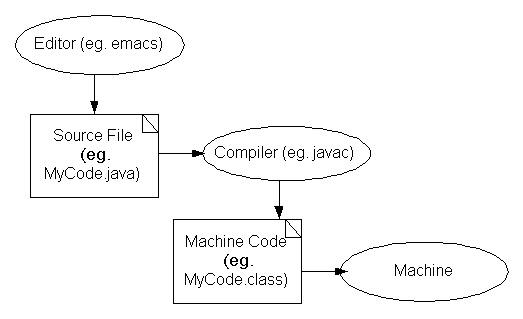

The following image shows the relationship between the tools and the files they consume and produce:

Ok, so what does a Java source file look like? Generally, a Java source file contains just a class definition. Let's take a look at an example class definition for BankAccount. Notice that this particular version of BankAccount only understands two methods: assessCheckingFee and deposit.

class BankAccount {
  int number;
  double balance
  String name;

  void assessCheckingFee() {
    this.balance = this.balance + 3.0;
  }

  void deposit(double amount) {
    this.balance = this.balance + amount;
  }
}

Try using a text editor to type in the above code into a file called BankAccount.java. Notice that we've given the file the same name as the class definition it contains. Next try to compile it. If your file looks like the one above, it shouldn't compile. It won't compile because it contains a syntax error. The compiler will complain and helpfully tell us where it discovered the syntax error, with a message like this:

BankAccount.java:3: ';' expected
  double balance
                ^
1 error

prompt> BankAccount myAccount = new BankAccount();
prompt> myAccount.deposit(100.0);
prompt> myAccount.assessCheckingFee();
prompt> System.out.println(myAccount.balance);

When you execute the above statements, is the result what you expected? Do you notice that something seems wrong with the balance of the account? This is a kind of error that the Java compiler cannot catch. It's a logic error in your program. It's like giving someone directions and telling them to go right instead of left at a critical intersection. The directions are perfectly understandable, but they don't get you to where you want to go. Programmers call this a "bug" in the program. In this case, the bug is that the assessCheckingFee method adds three dollars to the account rather than subtracting that amount. Clearly - from the banker's perspective, at least - this does not yield the intended result.

Let's fix the bug. We do so by again making the required changes to the code (in this case, just changing the '+' to a '-', and re-saving the file. We then re-compile the file, re-start the interpreter, and test the class as we did above.

Understanding the different kinds of errors and where they occur in the development process is critical to understanding how and where you should be spending your energy fixing them. Simply because a program is syntactically correct (a readable set of instructions) doesn't mean that it is semantically correct (that it will produce the intended result).

9. Object Wrapup

Key concepts

1. Interface
2. Initializing Objects: the Constructor
3. Information hiding (a little)

Introduction

1. opening a new account
2. withdrawing money
3. depositing money
4. checking our balance
5. transferring a balance to a new account

Constructors

BankAccount account = new BankAccount();
account.balance = 100.25;
account.number = 1234;
account.name = "Bob";

class BankAccount {
  int number;
  double balance;
  String name;

  BankAccount(int acctNumber, double initBalance, String acctName) {
    this.number = acctNumber;
    this.balance = initBalance;
    this.name = acctName;
  }
}

BankAccount account = new BankAccount(1234, 100.25, "Bob");

BankAccount anAccount = new BankAccount();

Rounding out the interface

class BankAccount {
  int number;
  double balance;
  String name;

  BankAccount(int acctNumber, double initBalance, String acctName) {
    this.number = acctNumber;
    this.balance = initBalance;
    this.name = acctName;
  }

  void deposit(double amount) {
    this.balance = this.balance + amount;
  }

  double getBalance() {
    return this.balance;
  }

  void withdraw(double amount) {
    this.balance = this.balance - amount;
  }

  void transferFrom(BankAccount other, double amount) {
    other.withdraw(amount);
    this.deposit(amount);
  }
}

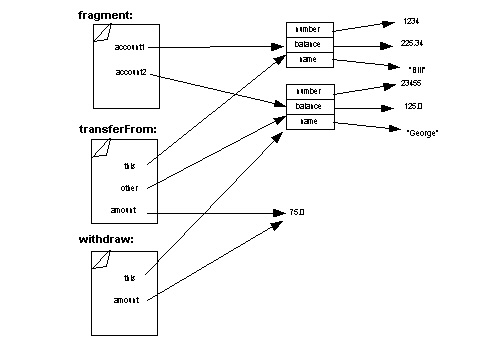

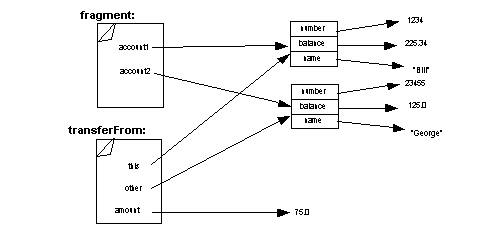

Finally, the transferFrom method shows us an example of a method that relies on other methods we have written. This method takes two arguments: another BankAccount object and an amount to transfer. It first withdraws the specified amount from the other account, and then deposits that amount into the receiver account. Now let's look at some BankAccount objects in action:

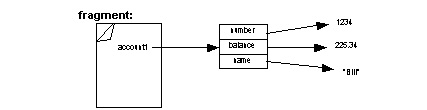

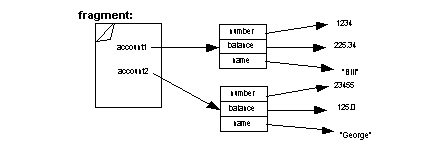

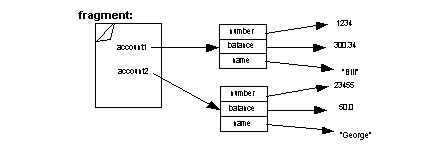

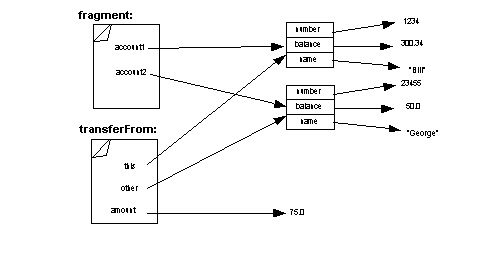

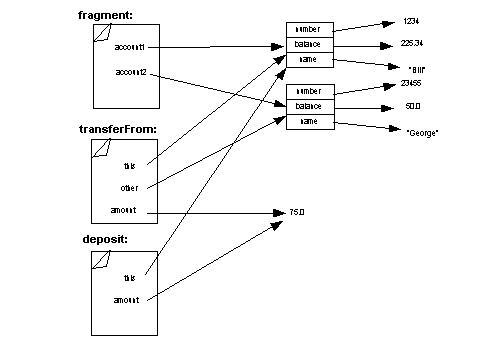

BankAccount account1 = new BankAccount(1234, 225.34, "Bill");
BankAccount account2 = new BankAccount(23455, 125.0, "George");
account1.transferFrom(account2, 75.0);
double newBalance = account2.getBalance();

Information Hiding

As a trivial example, consider the different ways we could represent the balance of a BankAccount object:

1. total number of pennies (an integer)
2. number of dollars (a rational number)
3. an integer number of dollars and integer number of pennies

We can enforce the visibility rules in Java by modifying our declarations with the keywords public and private. As a rule of thumb, we'll want to make all instance variables private and most of our methods public:

public class BankAccount {
  private int number;
  private double balance;
  private String name;

  public BankAccount(int acctNumber, double initBalance, String acctName) {
    this.number = acctNumber;
    this.balance = initBalance;
    this.name = acctName;
  }

  public void deposit(double amount) {
    this.balance = this.balance + amount;
  }

  // And so on with our other methods...
}

BankAccount account = new BankAccount(1234, 225.34, "Bill");

account.balance = 1000.0;      // ERROR!!

Documenting the Interface

/**
  The BankAccount class implements a simple bank account.
  @author Ben Dugan
  @version 11/11/2001
*/
public class BankAccount {
  private int number;
  private double balance;
  private String name;

  /**
    Create a new BankAccount object, with the given initial values.
    @param acctNumber an account number to use
    @param initBalance an initial balance
    @param acctName the name of the account owner
  */
  public BankAccount(int acctNumber, double initBalance, String acctName) {
    this.number = acctNumber;
    this.balance = initBalance;
    this.name = acctName;
  }

  /**
    Increase the balance by the given amount.
    @param amount the amount to deposit
  */
  public void deposit(double amount) {
    this.balance = this.balance + amount;
  }

  /**
    Answer the current balance.
    @return the current balance
  */
  public double getBalance() {
    return this.balance;
  }

  /**
    Decrease the balance by the given amount.  This method does not
    guard against overdrawing the account.
    @param amount the amount to withdraw
  */
  public void withdraw(double amount) {
    this.balance = this.balance - amount;
  }

  /**
    Transfer money between accounts.
    @param other a BankAccount to tranfer from
    @param amount an amount to transfer
  */
  public void transferFrom(BankAccount other, double amount) {
    other.withdraw(amount);
    this.deposit(amount);
  }
}

10. Understanding How Methods Work

Key concepts

1. Mental models: Substitution and Control Flow
2. Drawing Pictures of Method Invocations

Substitution

void deposit(double amount) {
  this.balance = this.balance + amount;
}

account.deposit(35.0);

account.balance = account.balance + 35.0;

Control Flow

int x = 10;
int y = x * x;
String myName = "Bill";

double amount = 15.25;                               // line 1
account.deposit(amount);                             // line 2
double euros = account.convertBalance(1.10);         // line 3

Thinking about method calls in terms of change of control flow is closer to the way method calls actually take place. More formally, when a method is called, the arguments to the method are first evaluated. Next, the names of the method's parameters are bound to the values of its arguments. Finally, control is passed to the first line of the method, and execution continues inside of the body of the method until either a return is encountered, or there are no more statements to execute. At this point, control passes back to the call site -- the point where the method was originally called.

Drawing Pictures

public class BankAccount {
  private int number;
  private double balance;
  private String name;

  public void deposit(double amount) {
    this.balance = this.balance + amount;
  }

  public void withdraw(double amount) {
    this.balance = this.balance - amount;
  }

  public void transferFrom(BankAccount other, double amount) {
    other.withdraw(amount);
    this.deposit(amount);
  }

  // And some other methods...

}

BankAccount account1 = new BankAccount(1234, 225.34, "Bill");
BankAccount account2 = new BankAccount(23455, 125.0, "George");
account1.transferFrom(account2, 75.0);

The box on the left is not an object, rather it is the way we draw a sheet of scratch paper. We've titled the piece of paper to differentiate it from other sheets of paper we'll be adding to this picture later on. In this case, we've chosen the arbitrary name "fragment" for our sheet of scratch paper. We modify the picture after executing the second line:

Now, things get interesting. When a message send takes place, we get a new piece of scratch paper, title it with the name of the message, and start drawing on that sheet of paper. Remember, when a method is invoked, parameter names are bound to the corresponding argument values, so we need to show those names on our paper. When control passes to the transferFrom method, the following picture results:

Notice that we've written three names: this (referring to the first bank account), other (referring to the second bank account), and amount (referring to the value 75.0). We show the binding for this to denote the object that is receiving the message.

Remember that the first thing that the transferFrom method does is call another method, withdraw. Again, this means adding another piece of scratch paper to our picture. When control passes to the withdraw method, the following picture describes the state of the world:

It's starting to look a bit messy, but we've really just added another piece of paper, and a couple of names to our world. Notice that on this new piece of paper, the name this refers to a different object than the name this on the piece of paper for tranferFrom. That makes sense, because each of those message sends have different receivers. Writing down which object this refers to helps us keep straight which object is handling a given message.

Now imagine that the withdraw method finishes. What's next? Well, control returns to the call site -- in the body of the transferFrom method. At this point, the piece of paper for withdraw is thrown away, and the following picture results. You've seen it before, except that the second bank account is missing some money -- due to the impact of the withdrawal we just made.

The next line of the body of transferFrom sends the deposit message to this. Again, we modify our picture to reflect the state of the world when that method is invoked:

Of course, the impact of the deposit method is just to increase the balance of the first account by $75.00. This happens, and the piece of scratch paper for this method is thrown away, and control returns to the transferFrom method again:

At this point, there's nothing left to do in the transferFrom method, so we just throw its piece of paper away, resulting in the final state of the world:

11. Making Choices

Key concepts

1. The simple conditional: if-then-else
2. Boolean expressions.

Introduction

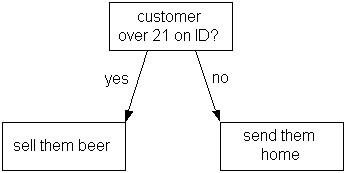

Check the buyer's ID.  If the customer is 21 or over, sell them beer,
otherwise, send them home.

We can express this in Java as follows:


IDCard id = aPerson.getID();
if (id.getAge() >= 21) {
  store.sellBeerTo(aPerson);
}
else {
  store.remove(aPerson);
}

if (<condition>) {
  <then clause>
}
else {
  <else clause>
}

Let's refine our algorithm, so it's more like the actual one used:

If the customer looks over 31, sell beer.  Otherwise, check their
ID.  If they are 21 or over, sell them beer, otherwise send them
home.

We might write this like this in Java:

if (aPerson.apparentAge() > 31) {
  store.sellBeerTo(aPerson);
}
if (aPerson.getID().getAge() >= 21) {
  store.sellBeerTo(aPerson);
}
else {
  store.remove(aPerson);
}

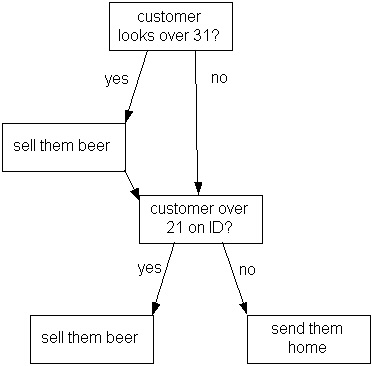

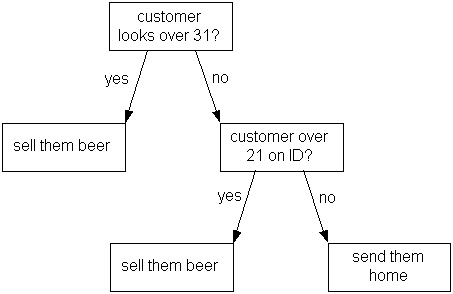

The bug in the above example is that we have written our if statement as a collection of two separate if statements. In some cases, (when the person appears to be older than 31 and is actually at least 21) they will be sold beer twice! What we really want to say is:

if (aPerson.apparentAge() > 31) {
  store.sellBeerTo(aPerson);
}
else {
  if (aPerson.getID().getAge() >= 21) {
    store.sellBeerTo(aPerson);
  }
  else {
    store.remove(aPerson);
  }
}

Java provides a set of operators, which are useful for comparing numbers. These include: <, >, >=, <=, !=, ==. Each of these operators compares two subexpressions, evaluating to a boolean (true or false) result. != and == are special because they can also be used to compare subexpressions that are not of numeric types. We'll see examples of this later. The following table summarizes the meaning of these operators:

Symbol	Meaning	Example Expression	Value if y is 11
>	greater than	y > 5	true
<	less than	y < 5	false
>=	greater than or equal	y >= 11	true
<=	less than or equal	y <= 10	false
!=	not equal	y != 5	true
==	equal	y == 5	false

Java also provides a set of operators which are useful for combining or transforming boolean expressions. Suppose you want to know if someone's age is between 21 and 31. You can actually already write this:

if (age >= 21) {
  if (age <= 31) {
    // do something
  }
  else {
  }
}
else {
}

if (age >= 21 && age <= 31) {
  // do something
}
else {
}

if (age >= 21 && age <= 31) {
  // do something
}

Symbol	Meaning	Example Expression	Value if y is 11
&&	and (true when both subexpressions are true)	(y > 5) && (y < 11)	false
||	or (true when either or both subexpressions are true)	(y < 5) || (y == 11)	true
!	not (true when subexpression is false)	!((y > 5) && (y < 11))	true

Again, there are precedence rules for boolean operators (generally they have lower precedence than arithmetic or comparison operators) but you can always use parentheses to be sure and to enhance readability of your code.

Let's revisit our refined beer-selling algorithm, and use boolean operators to express it more directly. When we think about it, we see that there are really just two outcomes, selling beer and removing the customer. We sell beer when the customer looks over 31 or when their ID shows them to be 21 or over. We remove the customer in all other cases.

if (aPerson.apparentAge() > 31  || aPerson.getID().getAge() >= 21) {
  store.sellBeerTo(aPerson);
} else {
  store.remove(aPerson);
}

Back to the BankAccount

class BankAccount {
  int number;
  double balance;
  String name;

  void withdraw(double amount) {
    this.balance = this.balance - amount;
  }
}

public class BankAccount {
  private int number;
  private double balance;
  private String name;

  // All the other methods...

  public boolean withdraw(double amount) {
    if (amount <= this.balance) {
      this.balance = this.balance - amount;
      return true;
    }
    else {
      return false;
    }
  }
}

BankAccount account = new BankAccount(1234, 225.34, "Bill");
Input input = new Input();

double amount = input.readDouble("How much money do you want?");
boolean succeeded = account.withdraw(amount);

if (succeeded) {
  System.out.println("Here's your money!!");
}
else {
  System.out.println("Sorry, insufficient funds!");
}

12. Analysis and Design

Key concepts

1. The design process and software lifecycle
2. Extended example: The Music Collection domain

Introduction

The Lifecycle

Stage	Artifacts Created
Analysis	Requirements
Design	Functional Specification
Implementation	Source code
Testing	Test cases, bug reports, certification
Maintenence	bug reports, feature requests

The first stage involves an analysis of the problem domain, which requires careful thinking and investigation of the problem to be solved. It usually results in a requirements document, which is a description of what problem is being solved. The design phase starts with this document and sketches out a design, a blueprint, for a system that should be able to solve the stated problem. Given a design specification, programmers write source code, during the implementation phase of a project. This source code can then be tested, to help assure that it meets the original specification. Finally, if the program is deemed to behave correctly during the test phase, it is released into the field, at which point maintenence begins. Problems may arise in practice that were not discovered in testing, or perhaps users want small features to be added to the program.

This model of the software lifecycle was originally known as the waterfall model, because information and workflow was seen to move in one direction only -- from analysis through to deployment and maintinence. This unidirectional flow and rigid reliance on sharp boundaries between the various phases has been shown to be unworkable and ineffective in practice, especially with large scale software projects. We'll explore some of the reasons for its failure and improvements to the process in a later lesson. For now, however, it is still worth knowing the basic stages of the software lifecycle because it gives us a language for discussing the software development process.

Introductory programming courses typically focus primarily on the implementation phase of a piece of software. Usually, a specification is provided in the form of a homework assignment ("Write a program that does this and that. It should have the following pieces. Etc.") and the end goal is to produce a program that meets the given specification. This is unfortunate because it makes programming seem like an incredibly boring and uncreative task. Further, it seems to suggest that the programmers responsibilities begin with the specification and end with the testing phase. In reality, good programmers must understand the practices and issues faced by all phases of the lifecycle, even if they don't actively participate in those phases.

An Extended Example

Let's think about compact disks for a moment. What are their properties? Here are a few: total running time, artist, year published, and the songs themselves. Let's go a level deeper. What about songs? Each song has some properties: the music (which is some sort of audio data), the name of the song, the length of the song.

Without knowing it, we've just done an analysis of the music collection domain. If we want to model it we need to define some objects for each of the main concepts. What are the concepts? Finding the right concepts takes experience and practice, but by and large, they fall directly out of our above analysis. Look at the nouns (objects) in the analysis:

Music collection, CD, time, artist name, date, audio data.

Song has a running time.
Song has a name.
Song has an audio data sample.

CD has a collection of Songs.
CD has a running time.
CD has a name.
CD has an artist.

MusicCollection has a collection of CDs

The analysis will often hint at both the representation as well as the interface of the classes we want to define. It's usually a good strategy to delay worrying about representation and implementation as long as possible. Sketching the behavior of objects and imagining their interactions is much easier and flexible than actually writing the actual code for them. Good programmers build worlds in their imaginations before building them in a program.

Let's imagine some of the operations that our Song class should support. Again, let's think about what we can do with real world songs.

1. create new songs
2. get their running time
3. get their title
4. play a song (on an audio player of some sort)

public class Song {

  // Create a new song

  // Get the running time of this song

  // Get the title of this song

  // Play this song onto an audio player
}

public class Song {
  private int seconds;
  private Sound sound;
  private String name;

  // Create a new song

  // Get the running time of this song

  // Get the title of this song

  // Play this song onto an audio player
}

public class Song {
  private int seconds;
  private Sound sound;
  private String name;

  // Create a new song
  public Song(String title, String lengthInSeconds, Sound theSound) {
    this.seconds = lengthInSeconds;
    this.sound = theSound;
    this.name = title;
  }

  // Get the running time of this song
  public int getLength() {
    return this.seconds;
  }

  // Get the title of this song
  public String getTitle() {
    return this.name;
  }

  // Play this song onto an audio player
}

class AudioPlayer {
  ...
  // Play the provided sound onto the audio device.
  public void playSound(Sound aSound);
}

public class Song {
  private int seconds;
  private Sound sound;
  private String name;

  // Create a new song
  public Song(String title, String lengthInSeconds, Sound theSound) {
    this.seconds = lengthInSeconds;
    this.sound = theSound;
    this.name = title;
  }

  // Get the running time of this song
  public int getLength() {
    return this.seconds;
  }

  // Get the title of this song
  public String getTitle() {
    return this.name;
  }

  // Play this song onto an audio player
  public void play(AudioPlayer player) {
    player.play(sound);
  }
}

13. Reasoning about Programs

Key concepts

1. Program Correctness
2. Specification/Requirements (for programs and methods)
3. Testing, reasoning about programs.

Story

In the simplest terms, a working program is one that solves the problem it set out to solve. The criteria of success is based largely on the description of the original problem. For instance, if I tell you: "Write a program that does stuff." It's very easy to write this kind of a program and to convince yourself that it works. Of course, I might not be very happy with it, because it probably doesn't do what I expected. If I want something more specific, I need to be clearer in my request. So I might say: "Write a program that draws a house." Now you have a somewhat more specific problem to solve, and we can have a more reasonable discussion about whether or not your program actually solves it. Suppose you deliver a program that draws a house with no windows. I might complain, but arguably your program has solved the problem I set forth. If I'd wanted windows, I should have made that part of my request.

The technical term for this kind of request is a specification. Specifications should have a level of detail sufficient to solve the real-world problem they are setting out to solve. For instance, the specifications for an air-traffic control system are likely to be much more detailed than the specifications for a beginning programming assignment.

Another useful way to think about specifications is that they express a contract between a client and a vendor. Contracts often have certain requirements (things that the vendor expects to be true for the contract to be excuted), and make certain guarantees (things that the vendor insists will be true once the contract is executed). Programming by contract is a useful way to split large programming tasks into smaller components. We can apply the concept of specification at various levels of a program. Initially, we might just write a specification for the whole program, but later, we'll break it down, perhaps writing specifications for individual methods that need to be written. These specifications are often advertised as part of the interface of a method. Having specifications at various levels and degrees of detail allows us to reason more effectively about the supposed behavior of a program.

The phrase "meets the spec" is often used to mean "the program works." How can you convince yourself that the program "meets the spec"? There are several approaches -- including testing and analysis. Suppose I give you this specification:

Write a program that reads a number between one and a million,
divides it by two, and prints the result.

Specifications themselves are of course rooted in human language, so it seems that they can only be as precise as our own, somewhat imprecise language. In the extreme, the definition of terms itself seems like it leads to an infinite regress. Consider the following example:

Write a program that takes two numbers and prints their sum.

- What does 'print' mean?
- It means to show the information on the computer screen.
- What's a computer screen?
- It's like the television, but it's connected to the computer.
- What's a computer?
- It's a machine that can execute a set of instructions you give it.
- What's an instruction?
- [And so on, and so on...]

In terms of structuring programs as contracts, the same problems arise. Arguably, calling specifications "contracts" is just sugaring over the core issue. To be effective, the contracts themselves must be crafted in just the appropriate amount of exacting detail. Having a contract is not enough -- it has to be a "good" contract. Lawyers understand that contracts are incredibly difficult to write well. It is no mistake that Contracts is typically regarded as one of the most difficult courses a law student will face. In a sufficiently large software system, writing a contract can be as difficult as writing a contract in the real world. Eventually, the contractual view seems to return us to the deep philosophical issues we wrestled with above.

At this point, you may be thinking that if it's so difficult or even impossible to specify anything at a sufficient level of unambiguous detail, how can we ever write a program that "works." The solution is perhaps to redefine what we mean by "works." A working program is one that is generally useful to the people who use it in their everyday lives. It is a program that supports rather than hinders their daily practices.

Many philosophers have wrestled with the question of understanding. In other words, they attempted to answer the question: "How do humans understand language? What does it mean to understand a word or a sentence? What is meaning?" Wittgenstein gave what many people consider a rather exotic answer to this question. Traditionally, this question has been answered in a denotational manner. In other words, the meaning of a word is that which it denotes. The word "apple" denotes (refers to) a crunchy, sweet, juicy fruit that grows on trees. For you to understand the word "apple" is for you to grasp this reference. Wittgenstein argued, however, that this view of language is impoverished. Consider a one year old who is just learning to speak. She may utter the word "banana". What she really "means" by saying that word is that she wants a piece of the banana that she sees sitting on the counter. For you to "understand" her is to actually cut and mash the banana and give her some. The traditional view of language does not explain this action- and use-oriented quality of language. For you to understand is to "do the right thing," rather than simply grasp the denotation of the word "banana" to the concept of the thing you have in your head.

Stepping back into the world of computer programs now, we see that the difficulty with specifications is that they do not capture the richness of meaning in the same way that a denotational theory of language cannot express the richness of how we use language. Fundamentally, we humans use programs to do things, the same way that we use language to do things. To have a successful (that is, understood by both parties) conversation is to get the thing done that you are wanting to get done. To have a successful, working computer program is to write one that gets done what you intended. The metric of success is usefulness to the humans that use it rather than simply meeting the specification.

This redefinition of success implies a markedly different approach to designing and developing computer programs -- where designers, developers, and users work together and contribute broadly to the creation of a software artifact. By working together more closely, designers and developers can better learn and understand aspects of the user's domain that may not have been well expressed in the initial specification. Furthermore, by testing prototypes - early versions of the software - on actual users, feedback can be gathered at a time when it makes the greatest impact -- early in the project. Understanding and improving the concept of user-centered or participatory design is an active field of research at the moment.

While specifications have their weaknesses, I want to emphasize that they do play an important role in the software development process. Specifications are useful. While it is arguable that they are even a necessary condition for building good software, it is a mistake to believe that they are sufficient condition. Perhaps the best we can do is formalize a specification to the extent that it assists us, but not to the extent that we lose the richness of the orginal domain. When asked about rules (definitions) for using language, Wittgenstein provided a characteristically fuzzy answer. He argued that rules should be viewed more as signposts at a fork in the road. Rules are adequate, he said, if they eliminate our doubt as to which direction to take. While the signpost cannot guarantee that someone will take the correct fork in the road, they will tend to do so if they are effective in their design. The metric of their success is their usefulness, rather than a normative standard of completeness or definiteness. By answering the question this way, he underscored the importance of rules without needing to make any claims or requirements as to their form.

14. Introduction to Collections

Key concepts

1. Collections
2. Ordered collections: ArrayList
3. Casting
4. Unordered collections: HashSet and HashMap

Introduction

1. dictionary
2. class list
3. deck of cards
4. music collection
5. library
6. bookbag

Some collections are inherently ordered. A deck of cards, for instance, has a first card, a last card, a seventh card, and so on. The books in a bookbag or backpack are not really ordered, on the other hand. What is the first book in the bookbag? You could answer this question a variety of ways: the alphabetically first book; or perhaps the first book you put into the bag. In any case, it seems that the answer to this question is unclear. Hence, we might say that a bookbag is an example of an unordered collection.

Because collections are so fundamental to the way we think about the world, every programming language provides some means to represent a collection. Java provides us with a particularly expressive set of collection classes, which we can use in our programs to build powerful abstractions. In this lesson, we'll take a look at just three examples, Arraylist, HashSet, and HashMap.

An Ordered Collection: ArrayList

public class ArrayList {

  /** Answer the size of the collection  */
  public int size();

  /** Answer the object at the given index */
  public Object get(int index);

  /** Add the given object to the end of the collection */
  public void add(Object o);

  /**
    Remove the object located at the given index from the collection,
    and shift any subsequent elements to the left.
    @return the element that was removed from the list
  */
  public Object remove(int index);
}

prompt> ArrayList names = new ArrayList();
prompt> names.add("Ahab");
prompt> names.add("Quequeg");
prompt> names
ArrayList["Ahab", "Quequeg"]
prompt> names.get(0)
"Ahab"
prompt> names.size()
2

Rounding out the Music domain: The CompactDisc class

CompactDisc has a collection of Songs.
CompactDisc has a running time.
CompactDisc has a name.
CompactDisc has an artist.

1. create new discs
2. get the title of a disc
3. get the artist of a disc
4. add a song to a disc
5. get the total running time of a disc
6. get the ith song of the disc

public class CompactDisc {

  // A constructor for making new CompactDisc objects

  // Get the title

  // Get the artist

  // Get the total running time

  // Add a song

  // Get the ith song

}

public class CompactDisc {
  private ArrayList  songs;          // a collection of songs
  private int        runningTime;    // total running time
  private String     artistName;     // artist name
  private String     title;          // disc title

  // A constructor for making new CompactDisc objects

  // Get the title

  // Get the artist

  // Get the total running time

  // Add a song

  // Get the ith song

}

public class CompactDisc {
  private ArrayList  songs;
  private int        runningTime;
  private String     artistName;
  private String     title;

  /**
    Create a new, empty compact disc.
    @param artistName the name of the recording artist
    @param title the title of the CD
  */
  public CompactDisc(String artistName, String title) {
    this.artistName = artistName;
    this.title = title;
    this.songs = new ArrayList();
    this.runningTime = 0;
  }

  /** Answer the title of the CD. */
  public String getTitle() {
    return this.title;
  }

  /** Answer the artist of the CD. */
  public String getArtist() {
    return this.artistName;
  }

  /** Answer the running time of the CD. */
  public int getRunningTime() {
    return this.runningTime;
  }

  /** Add the given song to the end of CD. */
  public void addSong(Song aSong) {
    this.songs.add(aSong);
    this.runningTime = this.runningTime + aSong.getLength();
  }

  /** Answer the ith song.
      @param i the index of the song to retrieve
      @return the Song at the ith position
  */
  public Song getSong(int i) {
    return (Song)this.songs.get(i);
  }

}

The addSong method is a little trickier, but not totally far out. It just adds the Song object (given as a parameter to the method) to the collection of songs. Finally, it increments the running time. Notice how this operation keeps the total running time up to date: every time a new song is added to the CD, it is queried for its running time, and this value is accumulated in the total running time of the CD.

The final method, getting a song from the disc, does indeed look somewhat strange. Can you see what is different about it? It looks the way it does because of a few special rules that the Java language imposes upon us. We'll talk about these rules in the following section.

Casting

Object someObject = new Song(...);

ArrayList someSongs = new ArrayList();
someSongs.add(new Song(...));
...
Song aSong = someSongs.get(0);              // type mismatch!!

This should help explain the strange-looking method body of getSong() in the class CompactDisc. We know that our ArrayList songs contains only Song objects. A client of our class expects that when they get the i-th song of a CompactDisc, they should receive a Song, not an Object. The problem is that the get() method on ArrayList returns an Object. We are faced with a seemingly impossible situation now -- as implementors of the class CompactDisc, we know that the ArrayList contains only Songs, but the compiler will insist it contains only Objects. How can we make the compiler happy? The answer is to cast the type of the object that is returned by get() to the appropriate type. The pattern for casting is as follows:

(<type-name>)<expression>

ArrayList things = new ArrayList();
things.add("Hello");
Song aSong = (Song)things.get(0);      // runtime error!!

Casting is a practice that is subject to terrible abuse, and hence must be used carefully. As we know, Java is very strict about using and abusing types, and does its best to catch abuses of types at compile time. Many beginning programmers use casting to get the compiler to shut up about type errors, only to pay the price when their programs are actually run. When using a cast, ask yourself the question, "Is it really the case that this expression is of this type?" If you cannot answer in the affirmative, then you should not be using a cast.

In the getSong method, we can ask ourselves that question and indeed answer in the affirmative. Why? Because we are the only people who can add things to the ArrayList, and we know (because of the interface of the addSong method), that we'll only ever add Song objects to our collection. Hence, when we access an object in that collection, we know that it must be a Song. Therefore, we may use a cast to make this promise to the compiler, and support the desired interface to the getSong method, namely that it should return an object of type Song, not Object.

Notice that the CompactDisc class is a relatively "thin" class. Its primary job is to maintain a collection of objects (Songs) and provide a client a nice interface for adding and accessing songs as well as getting general information about that collection. It performs these operations by building on pre-existing classes (such as String and ArrayList). The CompactDisc class is an example of a facade class. It provides a client with a clean, uniform interface to a set of sub-objects that together implement some sort of object. We'll see another example of this style of programming in the next section.

An Unordered Collection: HashSet

An Unordered Collection: HashMap

public class MusicCollection {
  private HashMap discs;
  private String name;

  /** Create a new collection with the given name. */
  public MusicCollection(String collectionName) {
    this.name = collectionName;
    this.discs = new HashMap();
  }

  /** Add the given disc to the collection. */
  public void add(CompactDisc disc) {
    this.discs.put(disc.getName(), disc);
  }

  /** Answer the disc with the given title. */
  public CompactDisc get(String title) {
    return (CompactDisc)this.discs.get(title);
  }

  /** Remove the disc with the given title. */
  public void remove(String title) {
    this.discs.remove(title);
  }
}

public class HashMap {

  /** Answer the value associated with the given key. */
  public Object get(Object key);

  /** Associate the given key with the given value. */
  public void put(Object key, Object value);

  /** Remove the key and its corresponding value from the table.
      @return the value if it exists, null otherwise */
  public Object remove(Object key);
}

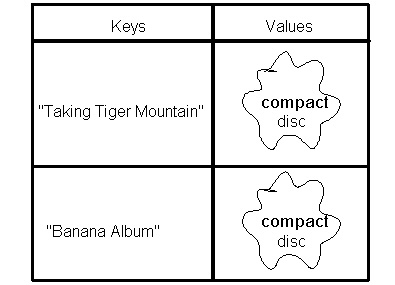

HashMap songs = new HashMap();
CompactDisc disc1 = new CompactDisc("Banana Album", "Velvet Underground");
CompactDisc disc2 = new CompactDisc("Taking Tiger Mountain", "Brian Eno");
songs.put(disc1.getName(), disc1);
songs.put(disc2.getName(), disc2);

We can retrieve items from our collection as follows:

CompactDisc aDisc = (CompactDisc)songs.get("Banana Album");

HashMap songs = new HashMap();
CompactDisc disc1 = new CompactDisc("Banana Album", "Velvet Underground");
CompactDisc disc2 = new CompactDisc("Taking Tiger Mountain", "Brian Eno");
songs.put("Banana Album", disc1);
songs.put("Great Album!", disc1);

HashMap songs = new HashMap();
CompactDisc disc1 = new CompactDisc("Banana Album", "Velvet Underground");
CompactDisc disc2 = new CompactDisc("Taking Tiger Mountain", "Brian Eno");
songs.put("Banana Album", disc1);
songs.put("Great Album!", disc1);
songs.put("Great Album!", disc2);

What about the following example?

HashMap songs = new HashMap();
CompactDisc disc1 = new CompactDisc("Banana Album", "Velvet Underground");
CompactDisc disc2 = new CompactDisc("Taking Tiger Mountain", "Brian Eno");
songs.put(disc1.getName(), disc1);
songs.put(disc2.getName(), disc2);
CompactDisc anotherDisc = (CompactDisc)songs.get("Revolver");

We can exploit this fact to check if we have a given CompactDisc in our collection:

String title = input.readString("Title of the disc? ");
CompactDisc theDisc = (CompactDisc)songs.get(title);
if (theDisc != null) {
  output.println("We have it in stock!");
}
else {
  output.println("Sorry, please try later...");
}

String title = input.readString("Title of the disc? ");
if (discs.containsKey(title)) {
  output.println("We have it in stock!");
}
else {
  output.println("Sorry, please try later...");
}

15. Introduction to Iteration

Key Concepts

1. Iteration
2. for loop (a counting loop)
3. while loop
4. loop equivalence

Introduction

1. While there are still donuts in the box, eat one.
2. Send each relative that sent you money for your birthday a thank-you note.
3. Drive until you see a fork in the road.
4. Put each item of clothing on the floor in the laundry basket.
5. Give a cookie to each of your instructors.
6. Bake the roast until it has an internal temperature of 220 degrees.
7. Lather, rinse, repeat. (Buggy!)

The for loop

int totalTemp = 0;

int mondayHi = input.readInt("Monday's high temp?");
totalTemp = totalTemp + mondayHi;
int tuesdayHi = input.readInt("Tuesday's high temp?");
totalTemp = totalTemp + tuesdayHi;
int wednesdayHi = input.readInt("Wednesday's high temp?");
totalTemp = totalTemp + wednesdayHi;
  ...
int averageHi = totalTemp / 7;

For each day of the month (week or whatever period) get the high
temperature and accumulate it.  Afterwards, divide the total
temperature by the number of days in the period.

int totalTemp = 0;
int numDays = 30;

for (int i=0; i < numDays; i=i+1) {
  int todaysHi = input.readInt("High temperature for day " + i);
  totalTemp = totalTemp + todaysHi;
}
int averageHi = totalTemp / numDays;

for (<initializer-statement>; <condition-expression>; <update-statement>) {
  <body>
}

Since so many for-loops contain statements like i=i+1 in their update step (indeed, incrementing by one is very common in other places too) you'll see the following shorthand used frequently:

i++;    // means i=i+1

The while loop

While there is rain on a given day, accumulate the total rainfall.
Afterwards, calculate the average.

int todaysRainfall = input.readInt("Today's rainfall?");
int daysWithRain = 0;

while (todaysRainfall > 0) {
  daysWithRain = daysWithRain + 1;
  totalRainfall = totalRainfall + todaysRainfall;
  todaysRainfall = input.readInt("Today's rainfall?");
}
int averageRainfall = totalRainFall / daysWithRain;

int daysWithRain = 0;
for (int todaysRainfall = input.readInt("Today's rainfall?");
     todaysRainFall > 0;
     todaysRainfall = input.readInt("Today's rainfall?")) {
  daysWithRain = daysWithRain + 1;
  totalRainfall = totalRainfall + todaysRainfall;
}
int averageRainfall = totalRainFall / daysWithRain;

16. Building a Software System

Key concepts

1. Basic program behavior: get input, do work, perform output
2. Example: A Banking Application
3. Wrapper Classes
4. Model-View-Controller Pattern (low calorie version)

Introduction

The Banking Domain: Analysis

1. Open a new account
2. Close an existing account
3. Deposit money into an account
4. Get the balance from an account
5. Withdraw money from an account
6. Print a list of all accounts

/**
  The BankAccount class implements a simple bank account.
  @author Ben Dugan
  @version 11/11/2001
*/
public class BankAccount {
  private int number;
  private double balance;
  private String name;

  /**
    Create a new BankAccount object, with the given initial values.
    @param acctNumber an account number to use
    @param initBalance an initial balance
    @param acctName the name of the account owner
  */
  public BankAccount(int acctNumber, double initBalance, String acctName) {
    this.number = acctNumber;
    this.balance = initBalance;
    this.name = acctName;
  }

  /**
    Increase the balance by the given amount.
    @param amount the amount to deposit
  */
  public void deposit(double amount) {
    this.balance = this.balance + amount;
  }

  /**
    Answer the current balance.
    @return the current balance
  */
  public double getBalance() {
    return this.balance;
  }

  /**
    Answer the account number.
    @return the account number
  */
  public int getAccountNumber() {
    return number;
  }

  /**
    Decrease the balance by the given amount.
    @param amount the amount to deposit
    @return true if and only if there were sufficient funds for the withdrawal
  */
  public boolean withdraw(double amount) {
    if (amount <= this.balance) {
      this.balance = this.balance - amount;
      return true;
    }
    else {
      return false;
    }
  }

  /**
    Transfer money between accounts.
    @param other a BankAccount to tranfer from
    @param amount an amount to transfer
  */
  public void transferFrom(BankAccount other, double amount) {
    other.withdraw(amount);
    this.deposit(amount);
  }
}

public class Accounts {
  private HashMap accounts;

  /** Create a new, empty Accounts collection. */
  public Accounts() {
    this.accounts = new HashMap();
  }

  /** Add an account to the collection. */
  public void addAccount(BankAccount account) {
    int accountNumber = account.getAccountNumber();
    Integer key = new Integer(accountNumber);
    accounts.put(key, account);
  }

  /** Retrieve an account from the collection. */
  public BankAccount getAccount(int accountNumber) {
    Integer key = new Integer(accountNumber);
    return accounts.get(key);
  }
}

Wrapper Objects

public class HashMap {

  /** Answer the value associated with the given key. */
  public Object get(Object key);

  /** Associate the given key with the given value. */
  public void put(Object key, Object value);

  /** Remove the key and its corresponding value from the table.
      @return the value if it exists, null otherwise */
  public Object remove(Object key);
}

public BankAccount getAccount(int accountNumber) {
  return accounts.get(accountNumber);
}

public class Integer {
  /** Create a new Integer containing the given value. */
  public Integer(int value);

  /** Answer the integer value of this object. */
  public int intValue();
}

The User Interface

As usual, we have several options for assigning these responsibilities. The first and perhaps most obvious option is to assign them to the Accounts object. We could, for instance, add a method to the Accounts class that prompts the user for an account number, then looks up that account, and prints the result to the screen. The method might look like this:

public void printAccount(Input in, Output out) {
  int number = in.readInt("Enter account number: ");
  BankAccount account = this.getAccount(number);
  out.println(account);
}

First, it violates what we might call the "Hedgehog Principle". The name "Hedgehog Principle" comes from the saying "The fox knows many things, but the hedgehog knows one great thing." The hedgehog is, above all, an expert at rolling itself into a ball to defend itself. The fox, for all of its general cunning cannnot defeat the expert hedgehog. Taken to a programming context, this principle states that classes should prefer to be excellent at doing one thing, rather than be pretty good at a variety of things. By adding a method like printAccount to the Account class, we're asking it to be good at both doing input and output, as well as managing a collection of BankAccounts.

Second, the above design does not typically result in maintainable software. Imagine trying to ship the above software to a country where another language is spoken. We've hardcoded the English language prompt into the definition of the Accounts class. To ship the software to Germany, for instance, we'd have to make a copy of the class (call it something like GermanAccounts), and then go change the prompts in the GermanAccounts class. While this approach would work, what happens when we discover a bug in the original Accounts class? We'd have to fix the bug in the Accounts class, as well as GermanAccounts, FrenchAccounts, and so on. Doing this in practice would be a maintinence nightmare.

Finally, it does not partition the work between different programmers very well. In a real system, getting the user interface right is a big job, and we'd like to allow some programmers to focus just on building an excellent interface, while other programmers might focus on building the underlying system objects, such as BankAccount and Accounts.

These issues encourage us to create a separate class whose job it was only to be an expert at performing input and output. We'll call this class BankUI (short for BankUserInterface). It will have methods that support the following typical bank teller activities:

1. Open a new account
2. Close an existing account
3. Deposit money into an account
4. Get the balance from an account
5. Withdraw money from an account
6. Print a list of all accounts

public class BankUI {
  private Accounts accounts;
  private Input input;
  private Output output;
  private nextAccountNumber;

  /** Create a new BankUI for the given objects. */
  public BankUI(Accounts accounts, Input in, Output out) {
    this.accounts = accounts;
    this.input = in;
    this.output = out;
    this.nextAccountNumber = 0;
  }

  /** Create a new account */
  public void createAccount() {
    int number = nextAccountNumber;
    nextAccountNumber = nextAccountNumber + 1;
    double balance = input.readDouble("Enter starting balance: ");
    String name = input.readString("Enter account name: ");
    BankAccount account = new BankAccount(number, balance, name);
    accounts.addAccount(account);
    output.println("Account# " + number + " created for " + name);
  }

  /** Get the balance from an account. */
  public void checkBalance() {
    int number = input.readInt("Enter account number: ");
    BankAccount account = accounts.getAccount(number);
    output.println("The balance is " + account.getBalance());
  }

  /** Deposit money into an account. */
  public void depositMoney() {
    int number = input.readInt("Enter account number: ");
    BankAccount account = accounts.getAccount(number);
    double amount = input.readDouble("Enter amount: ");
    account.deposit(amount);
    output.println("New balance: " + account.getBalance());
  }

  /** Withdraw money from an account. */
  public void withdrawMoney() {
    int number = input.readInt("Enter account number: ");
    BankAccount account = accounts.getAccount(number);
    double amount = input.readDouble("Enter amount: ");
    boolean success = account.withdraw(amount);
    if (success) {
      output.println("Withdrawal succeeded.");
    }
    else {
      output.println("Withdrawal failed.  Insufficient funds.");
    }
  }
}

Driving the interface

prompt> Input in = new Input();
prompt> Output out = new Output();
prompt> Accounts accounts = new Accounts();
prompt> BankUI ui = new BankUI(accounts, in, out);
prompt> ui.createAccount();
Enter starting balance:
200.50
Enter account name:
Ahab
Account# 0 created for Ahab
prompt> ui.depositMoney();
Enter account number:
0
Enter amount:
50.0
New balance: 250.50
prompt>

In real life, we wouldn't expect the teller to actually type Java code to send messages to the BankUI. We can actually internalize the calling of the BankUI methods in the class itself:

public class BankUI {

  // All the other methods...

  /** Print a menu of options. */
  public void printMenu() {
    output.println("Please enter one of the following options:");
    output.println(" [n]ew account");
    output.println(" [d]eposit");
    output.println(" [w]ithdraw");
    output.println(" [q]uit");
  }

  /** Prompt teller and dispatch to appopriate method.
      @return false if and only if the teller quit */
  public boolean dispatch() {
    char option = input.readChar("Enter Option: ");
    boolean quitting = false;
    if (option == 'n') {
      this.createAccount();
    }
    else if (option == 'd') {
      this.depositMoney();
    }
    else if (option == 'w') {
      this.withdrawMoney();
    }
    else if (option == 'q') {
      output.println("Goodbye!");
      quitting = true;
    }
    else {
      output.println("Invalid option.");
    }
    return quitting;
  }

  /** Run the UI until the teller decides to quit. */
  public void go() {
    boolean quitting = false;
    while (!quitting) {
      printMenu();
      quitting = dispatch();
    }
  }
}

prompt> Input in = new Input();
prompt> Output out = new Output();
prompt> Accounts accounts = new Accounts();
prompt> BankUI ui = new BankUI(accounts, in, out);
prompt> ui.go();
Please enter one of the following options:
  [n]ew account
  [d]eposit
  [w]ithdraw
  [q]uit
Enter option:
n
Enter starting balance:
200.50
Enter account name:
Ahab
Account# 0 created for Ahab

Please enter one of the following options:
  [n]ew account
  [d]eposit
  [w]ithdraw
  [q]uit
Enter option:
d
Enter account number:
0
Enter amount:
50.0
New balance: 250.50

Please enter one of the following options:
  [n]ew account
  [d]eposit
  [w]ithdraw
  [q]uit
Enter option:
x
Invalid option.

Please enter one of the following options:
  [n]ew account
  [d]eposit
  [w]ithdraw
  [q]uit
Enter option:
q
Goodbye!

prompt >

What's missing

1. When the teller quits the application, all account information is lost. We'd like the application to be able to "open" and "save" account information from a file on a disk.
2. What about non-existent accounts? Right now, we are assuming that the teller always enters a valid account number. What happens if an invalid account number is entered?
3. In the real world, several people can share one account. Does the current system handle this situation? If not, how might we modify one or more of the classes to handle this case.
4. People often forget their account numbers. We'd like a way to access accounts by a key other than account numbers. Can you think of another useful key and how we might modify the system to handle this situation?

The Model-View-Controller Pattern

While we have combined the jobs of the view and the controller in the BankUI object, we are still faithful to the basic distinctions of the MVC pattern. By decoupling the components in this manner, we gain a great deal in terms of flexibility and reusability. For instance, assume that we need to implement a fancier version of our user interface. In this day and age, text-driven user interfaces are not very popular anymore. Most user interfaces are graphical in nature, and rely heavily on mouse inputs and menus for option selection. Given the above design, we can reuse the BankAccount and Accounts classes without modification, and simply implement a new class (perhaps called GraphicalBankUI) to manage the appropriate display objects and handle mouse inputs from the user. Furthermore, we can mix and match our user interface components in an interesting manner. We can, for instance, start our development by building a simple text-driven user interface, and then later start working on a graphical user interface. During the development and testing of this more complicated interface, we can still rely on the old text-driven interface to test-drive our system, or provide access to features that are not yet available in the nascent graphical user interface.

17. Iterating Over Collections

Key concepts

1. Ordered (Indexed) Collections
2. Unordered Collections
3. Iteration Abstracted
4. Common Iteration Idioms

Introduction

Walk through the collection of songs, printing the name of each one.

Ordered Collections

output.println(nameList.get(0));
output.println(nameList.get(1));
output.println(nameList.get(2));

int numNames = nameList.size();
for (int i=0; i<numNames; i++) {
  output.println(nameList.get(i));
}

For each item of the list, print it.

int numNames = nameList.size();
for (int i=0; i<=numNames; i++) {
  output.println(nameList.get(i));
}

Unordered Collections: The Easy Way

HashMap someTable = new HashMap();
// assume we add some items here...

// the keySet() method on HashMaps returns a Set of the keys of the map
Set keys = someTable.keySet();

// now we can create and initialize a new ArrayList with that collection
ArrayList list = new ArrayList(keys);

// and now we can iterate
for (int i=0; i<list.size(); i++) {
  // Access the values of the map with:  someTable.get(list.get(i))
}

Iteration Abstracted: an Iterator

public interface Iterator {

  /** Answer the next Object and advance the iterator. */
  public Object next();

  /** Answer true if the iterator has more elements. */
  public boolean hasNext();
}

// Create a HashMap and add some mappings
HashMap map = new HashMap();
map.put("Willa", "Cather");
map.put("Raymond", "Carver");

// Now get the Set of its keys
Set keys = map.keySet();

// Now get an iterator over this set:
Iterator iter = keys.iterator();

// Create a HashMap and add some mappings
HashMap map = new HashMap();
map.put("Willa", "Cather");
map.put("Albert", "Camus");
map.put("Raymond", "Carver");

// Now get the iterator and iterate over it
Iterator iter = map.keySet().iterator();

while (iter.hasNext()) {
  Object aKey = iter.next();
  output.println(aKey + " " + map.get(aKey));
}

First, get all of the keys in the map.
Next, while there are still keys, get the next key and print out the
  key and the associated value from the map.

Raymond Carver
Albert Camus
Willa Cather

ArrayList names = new ArrayList();
names.add("Bob");
names.add("Bill");
names.add("Susan");

// Now get an Iterator and iterate over it
Iterator iter = names.iterator();

while (iter.hasNext()) {
  Object item = iter.next();
  output.println(item);
}

Common Idioms

The loops we've seen so far are examples of simple traversals. They simply walk over the collection, doing something to or with each item. We can write the pattern as follows:

Iterator iter = <collection>.iterator();
while (iter.hasNext()) {
  Object item = iter.next();
  <do something with the current item>
}

A reduction is a loop that aims to reduce, or distill some piece of information out of the elements in the collection. Examples include finding the largest (or smallest) element, finding a specific element, summing the values of the elements. Suppose we have an ArrayList called names that contains Strings, and we wish to find the longest one:

String longest = null;
Iterator iter = names.iterator();
while (iter.hasNext()) {
  String name = (String)iter.next();
  if (longest == null || longest.length() < name.length()) {
    longest = name;
  }
}

int totalLength = 0;
Iterator iter = names.iterator();
while (iter.hasNext()) {
  String name = (String)iter.next();
  lotalLength = totalLength + name.length();
}

<set up initial bindings for the essence>
Iterator iter = <collection>.iterator();
while (iter.hasNext()) {
  Object item = iter.next();
  <rebind the essence based on the current item>
}

A final idiom for collection iteration is one that filters out certain elements of interest. Generally this means collecting the elements that pass a test into a new collection. Suppose we want to collect all of the elements in our ArrayList of Strings that are even in length:

ArrayList evens = new ArrayList();
Iterator iter = someArrayList.iterator();
while (iter.hasNext()) {
  String name = (String)iter.next();
  if (name.length() % 2 == 0) {
    evens.add(name);
  }
}

ArrayList passedTheTest = new ArrayList();
Iterator iter = <collection>.iterator();
while (iter.hasNext()) {
  Object item = iter.next();
  <conditionally add item to the passedTheTest collection>
}

When writing a loop that iterates over a collection, it's useful to ask yourself "Does the iteration fit into a pattern I already know?" Chances are that it will. Understanding and practicing these few patterns will make writing most collection iterations a breeze.

18. Arrays

Key concepts

1. Arrays as basic collections; array types
2. Creating Arrays
3. Indexed Access
4. Iterating over arrays

Introduction

Creating Arrays

double[] rainfall = new double[7];

Indexed Access

rainfall[0] = 0.1;  // Sunday's rainfall
rainfall[1] = 0.0;  // Monday's rainfall
rainfall[2] = 1.5;  // Tuesday's rainfall; a real gusher
rainfall[3] = 0.7;  // Wednesday's rainfall
rainfall[4] = 0.0;  // Thursday's rainfall
rainfall[5] = 0.0;  // Friday's rainfall
rainfall[6] = 0.1;  // Saturday's rainfall

We use indexing to get things back out of the array, too:

double mondaysRainfall = rainfall[1];
double weekend_rainfall = rainfall[0] + rainfall[6];

rainfall[x + y - z] = rainfall[x - y * z] * 5;

Rectangle[] rectangles = new Rectangle[4];
rectangles[0] = new Rectangle(0, 0, 100, 200);
rectangles[1] = new Rectangle(200, 200, 10, 20);
rectangles[2] = new Rectangle(300, 300, 100, 40);
rectangles[3] = new Rectangle(100, 100, 10, 20);

Again, we use indexing to access elements of our array:

Rectangle aRectangle = rectangles[2];

<array-name>[<index-expression>]

Iterating Over Arrays

// assume we've created and filled an array of rainfall data

int totalRainfall = 0;

for (int day = 0; day < 7; day++) {
  // day is in the range 0..6 here
  double dayRainfall = rainfall[day];
  totalRainfall = totalRainfall + dayRainfall;
}

// totalRainfall now has the right answer

for (<indexName>=0; <indexName> < <array-length>; <indexName>++) {
  ... array[<indexName>] ...
}

In this example, we knew that the rainfall data was for a week, so we used the constant 7 as the upper limit of the loop. But in the future, we might change it to be for a month, or a year, or anything else. To make our code be more adaptable to future changes to the size of the rainfall array, as well as to make the code clearer to the reader ("what does 7 mean?", they might ask), we can change it to use a final Java feature of arrays: asking their length.

The expression a.length evaluates to the length of the array a. We can use this expression as the upper limit of the for-loop:

// assume we've created and filled an array of rainfall data

int totalRainfall = 0;

for (int day = 0; day < rainfall.length; day++) {
  double dayRainfall = rainfall[day];
  totalRainfall = totalRainfall + dayRainfall;
}

// totalRainfall now has the right answer

An even better idea is to anticipate that we might be wanting to calculate sums of arrays of numbers in other applications too, and so implement a function just for that purpose:

// in some class, e.g. ArrayFunctions
public static double sum(double[] array) {
  int total = 0;
  for (int index = 0; index < array.length; index++) {
    // index is in the range 0..(array.length-1) here
    total = total + array[index];
  }
  return total;
}

int totalRainfall = ArrayFunctions.sum(rainfall);

19. Using Arrays

Key concepts

1. When to use arrays instead of ArrayLists
2. A non-trivial application of arrays

Motivation

int size = input.readInt("How many items?");
double[] rainfall = new double[size];

// now get the items:
for (int day=0; day < size; day++) {
  rainfall[day] = input.readInt("How much rainfall on day " + day);
}

// now the array is full of valid data...

Despite the apparent limitations of arrays, they do provide us with a fundamental building block for creating higher level abstractions. Furthermore, accessing elements in an array is more efficient than the equivalent operations on an ArrayList. While these efficiency considerations should not concern us, they are of concern to programmers who must interface with the services of the system (such as the disk, network devices, audio resources, and so on).

Building our own (simple) ArrayList

public class SimpleArrayList {
  /** Create a new, empty SimpleArrayList. */
  public SimpleArrayList();

  /** Add the given object to the end of the list. */
  public void add(Object o);

  /** Answer the object that lives at the given index. */
  public Object get(int i);

  /** Answer the number of elements. */
  public int size();
}

public class SimpleArrayList {
  private Object[] items;      // the elements
  private int      size;     // the number of valid elements

  /** Create a new, empty SimpleArrayList. */
  public SimpleArrayList() {
    this.items = new Object[4];
    this.size = 0;
  }

  /** Add the given object to the end of the list. */
  public void add(Object objectToAdd) {
    this.items[this.size] = objectToAdd;
    this.size = this.size + 1;
  }

  /** Answer the object that lives at the given index. */
  public Object get(int index) {
    if (index >= 0 && index < this.size) {
      return this.items[index];
    }
    else {
      return null;
    }
  }

  /** Answer the number of elements. */
  public int size() {
    return this.size;
  }
}

public class SimpleArrayList {
  private Object[] items;      // the elements
  private int      size;       // the number of valid elements

  /** Create a new, empty SimpleArrayList. */
  public SimpleArrayList() {
    this.items = new Object[4];
    this.size = 0;
  }

  /** Grow the array, by doubling its size */
  public boolean grow() {
    Object[] newItems = new Object[this.items.length * 2];
    for (int index=0; index < this.items.length; index++) {
      newItems[index] = this.items[index];
    }
    this.items = newItems;
  }

  /** Add the given object to the end of the list. */
  public void add(Object objectToAdd) {
    if (this.size == this.items.length) {
      grow();
    }
    this.items[this.size] = objectToAdd;
    this.size = this.size + 1;
  }

  /** Answer the object that lives at the given index. */
  public Object get(int index) {
    if (index >= 0 && index < this.size) {
      return this.items[index];
    }
    else {
      return null;
    }
  }

  /** Answer the number of elements. */
  public int size() {
    return size;
  }
}

The SimpleArrayList class is far from complete. We'd at least like to be able to add an item into the middle of the collection. Imagine how you would do this. First, such a method would perhaps have to grow the items array. Second, it would also need to deal with shifting those items to the "right" (at higher indices) of the insertion point to the right.

20. Multidimensional Arrays

Key concepts

1. Two Dimensional Arrays
2. Multi-Dimensional Arrays

Introduction

Creating a 2D Array

int[][] products = new int[6][6];

Notice that the name products refers to an array. That array is an array of arrays of integers. products[0] refers to the first array of integers. We'll often talk about two dimensional arrays in terms of rows and columns. The first dimension selects the row -- products[0] selects the array that is the first row. Here are some examples of getting and setting values in the array:

int[][] products = new int[6][6];

int[] secondRow = products[1];         // the second row
secondRow[0] = 0;                      // set some values
secondRow[1] = 1;
secondRow[2] = 2;

// This is legal shorthand: set the 4th element of the 3rd row
products[3][4] = 12;

for (int row=0; row<6; row++) {      // visit each row
  for (int col=0; col<6; col++) {    // visit each column of the current row
    products[row][col] = row*col;
  }
}

for (int row=0; row < products.length; row++) {
  for (int col=0; col < products[row].length; col++) {
    products[row][col] = row*col;
  }
}

double[][][] temperatures[150][100][120];

21. Exceptions

Key concepts

1. Handling Errors
2. Error Codes
3. Exceptions

Introduction

There are a variety of strategies for handling errors at run time. These include doing nothing, notifying the user, halting the program, and a host of other possible actions. Depending on the type of application, various of these approaches may be valid.

At one extreme, imagine a program that averages weather data over extremely large data sets. The program designers probably expect out of range or missing data, and would design their program to be silently tolerant of such errors, perhaps reporting the number of missing or invalid data items. Halting the program or issuing a warning for every invalid data item would certainly be overkill in this case.

In the middle ground, imagine an ATM application. If for instance, the user attempts to overdraw your bank account, halting the ATM program (and shutting down the ATM) is probably not the right approach. Silently ignoring the problem is probably not the right strategy either. Ideally, the program should give them a warning, and not modify their account. It may then want to give the user another opportunity to withdraw less money.

At the other extreme, there exist applications whose failure can put many lives at risk. Imagine a program that controls a nuclear reactor or assists air traffic controllers. If the program that controls a nuclear reactor encounters an input that is out of the expected range, it may mean that something very serious has happened. Silently ignoring it is certainly not an option. Notifying human operators is certainly of utmost importance. Shutting down the program is perhaps even the right strategy, depending on how the entire control system has been designed.

It's the job of a class designer and implementor to decide what to do about errors, and how to report and handle them if necessary. The conditions that are considered errors, and the behavior of classes of objects in the face of these errors are important details of a class interface.

One approach: Error codes

public class BankAccount {
  private int number;
  private double balance;
  private String name;

  /**
    Decrease the balance by the given amount.  If insufficient funds,
    the balance is unchanged.
    @param amount the amount to withdraw
    @return true if and only if sufficient funds were available
  */
  public boolean withdraw(double amount) {
    if (amount <= this.balance) {
      this.balance = this.balance - amount;
      return true;
    }
    else {
      return false;
    }
  }
}

BankAccount account = new BankAccount(1234, 225.34, "Bill");
Input input = new Input();

double amount = input.readDouble("How much money do you want?");
boolean succeeded = account.withdraw(amount);

if (succeeded) {
  System.out.println("Here's your money!!");
}
else {
  System.out.println("Sorry, insufficient funds!");
}

A Better Approach: Exceptions

First, let's look at an example of raising or throwing an exception.

public class BankAccount {

  // ... other stuff ...

  /**
    Decrease the balance by the given amount.  If insufficient funds,
    throws an Exception.
    @param amount the amount to withdraw
  */
  public void withdraw(double amount) throws Exception {
    if (amount <= this.balance) {
      this.balance = this.balance - amount;
      return true;
    }
    else {
      throw new Exception("Insufficient Funds");
    }
  }
}

The keyword throws modifies the signature of the method, advertising to the world that this method may, under some circumstances throw an exception. If the body of the method contains a throw statement, or calls a method that may throw an exception that does not get handled inside of the body of the method, then the compiler will insist that this exception throwing behavior be advertised in the method signature. By this manner, the compiler can and does enforce the handling of exceptions in client code.

Handling Exceptions

BankAccount account = new BankAccount(1234, 225.34, "Bill");
Input input = new Input();

double amount = input.readDouble("How much money do you want?");

try {
  account.withdraw(amount);
  System.out.println("Here's your money!!");
  // give the user their money....
}
catch (Exception anException) {
  System.out.println("Sorry, insufficient funds!");

}

Think about what actually happens if the exception is thrown by the withdrawal operation. Do the subsequent lines in the try block get excecuted? We would hope not, because this would mean giving the user money that didn't exist in their account. This behavior might make you and me happy, but not the banker. In fact, the subsequent lines do not get executed, because the thrown exception causes the control of the execution of the program to change. Code is no longer excecuted sequentially; rather, the execution of the program is literally suspended and control is passed to the enclosing catch block. This is substantially different from the standard form of program execution. But if you think about it, not at all unreasonable: erroneous conditions should cause our program to halt normal operation and do some work to fix or report the condition.

Class Design Issues

public class BankAccount {

  // ... other stuff ...

  /**
    Decrease the balance by the given amount.  If insufficient funds,
    throws an Exception.
    @param amount the amount to withdraw
  */
  public void withdraw(double amount) throws Exception {
    if (amount <= this.balance) {
      this.balance = this.balance - amount;
      return true;
    }
    else {
      throw new Exception("Insufficient Funds");
    }
  }

  /**
    Transfer money between accounts.  If the account to transfer from
    has insufficient funds, an Exeption is thrown.
    @param other a BankAccount to tranfer from
    @param amt an amount to transfer
  */
  public void transferFrom(BankAccount other, double amt) throws Exception {
    other.withdraw(amt);
    this.deposit(amt);
  }
}

Now let's look briefly at the other approach, which handles the exception within a method body.

public class BankAccount {

  // ... other stuff ...

  /**
    Decrease the balance by the given amount.  If insufficient funds,
    throws an Exception.
    @param amount the amount to withdraw
  */
  public void withdraw(double amount) throws Exception {
    if (amount <= this.balance) {
      this.balance = this.balance - amount;
      return true;
    }
    else {
      throw new Exception("Insufficient Funds");
    }
  }

  /**
    Transfer money between accounts.  Print a message if the origin account
    has insufficient funds.
    @param other a BankAccount to tranfer from
    @param amount an amount to transfer
  */
  public void transferFrom(BankAccount other, double amt) {
    try {
      other.withdraw(amt);
      this.deposit(amt);
    }
    catch (Exception anException) {
      System.out.println("Insufficient funds.");
    }
  }
}

This approach is undesirable on at least two counts. First, the methods of the class are inconsistent in terms of their error behavior. The withdraw method may throw an exception if there are not enough funds, but the transferFrom method simply prints out a warning. Consistency in class design is a principle of utmost value, and the above design violates that principle.

Second, the above example demonstrates the potential drawback of handling errors at this level. BankAccounts are data objects, they have basic properties and behaviors, but it's hard to argue that the BankAccount should be responsible for printing an error message. BankAccounts are certainly responsible for doing the right thing in the face of insufficient funds, which is to not alter the account balance and to let the client code know that an error has occurred. Imagine a variety of banking systems that use different display technologies yet all interface with the same BankAccount objects. One system might wish to display a graphical icon if an account is overdrawn; another system may want to display a pop-up dialog; another system may want to print a message on a piece of paper; systems in Germany will want to display their messages in a different language from those in England. The display of an error message to the user is an issue for the designer and implementor of the user interface. The above design violates this partitioning of responsibility, and results in a less reusable class design.

22. Using DrJava

Key concepts

1. Download & Setup
2. Getting Started: The Interpreter
3. Compiling Classes

Introduction

Download

Next, visit the DrJava website at drjava.sourceforge.net and download the DrJava software. The software is distributed as a JAR (Java ARchive file) which makes using it a breeze. In fact, you shouldn't have to do any "installation" as such. When you save the JAR file, make sure you name it "drjava.jar", because the following instructions rely upon that fact. Depending on your operating system and your Java Platform installtion, you might be able to simply double-click on the drjava.jar icon. If that doesn't work right (you should see a window open up), then you'll have to use the command prompt (or shell) available on most systems.

What's a command prompt? It's basically a (primitive) way to instruct the operating system of your machine to do something. Before graphical user interfaces, mice, windows, and icons, it was the way all users interacted with the operating system. If they wanted to move or rename a file, they had to instruct the operating system in some sort of command language to do so. While it seems like a step backwards to learn about an old-fashioned way of doing things, it's a worthwhile experience. Remember that becoming a programmer means becoming familiar with the way machines work at a more basic level. The shell exposes you to some of this and we think that's a good thing. Even in this day and age of nailguns and powersaws, a good carpenter still knows how to use an old fashioned hammer to drive nails.

Open a shell (command prompt) and make sure that you're in the directory (folder) that contains the DrJava jar file. This might mean changing your current directory. Once you're in this directory, try:

prompt> java -jar drjava.jar

Getting Started: The Interpreter

Welcome to DrJava.
>

Welcome to DrJava.
> 42

Welcome to DrJava.
> 42
42
> 42;

Try out some of the examples presented throughout the first chapters of the text. What happens when you mistype something? Sometimes the error messages returned by the system could be considered a little cryptic, but they'll often hint at the problem. Try creating an ArrayList and adding the names of the members of your family to the list.

The Compiler

public class MyPoint {
  private int x;
  private int y

  public MyPoint(int x, int y) {
    this.x = x;
    this.y = y;
  }

  public MyPoint add(MyPoint otherPoint) {
    return new MyPoint(this.x + otherPoint.x, this.x + otherPoint.y);
  }

  public String toString() {
    return "MyPoint[" + this.x + ", " + this.y + "]";
  }
}

Now you should be ready to test your new class. Go to the interpreter pane and new up some new instances of MyPoint:

Welcome to DrJava.
> MyPoint p1 = new MyPoint(10, 20);
> MyPoint p2 = new MyPoint(30, 40);
> p1
MyPoint[10, 20]
> p1.add(p2)
MyPoint[40, 50]

Congratulations! You've just compiled and tested your first class! Now try to modify the class a bit. Try adding a subtract method. Try adding another constructor. For a more difficult challenge, try adding a method called distance that takes another MyPoint object as an argument and returns a double that is the distance between the receiver and the argument.

Notice the difference between interpreted code and compiled code. Code that you type into the interpreter window gets interpreted immediately; code you type into the editor window (and then compile) doesn't get evaluated until you actually invoke the methods that contain that code. The bodies of methods are like little sets of instructions that get stored away for later use. They are not called into use until the appropriate message is sent. Sending the appropriate message to test your code is easy by using the interpreter, which is one of the great features of the DrJava environment. It lets you test your code quickly and simply as soon as you write it!

23. Exercises

Introduction

Expressions, Objects, Classes, Messages

1. Give a precise set of instructions for getting to your favorite movie theater or restaurant.
2. Would the above set of instructions look different if the intended audience was from out of town? How?
3. Pick a real-world thing that you are comfortable with, such as your automobile, home, bedroom, or pet. Describe in detail the composition of this object. For instance, you might say that your car has an engine, wheels, seats, and so on.
4. Draw diagrams such as the ones used in the text to illustrate the composite relationships.
5. Define, in your own words, the meaning of these terms: object, concept, type,reference, meaning.
6. What is the relationship between objects and concepts?
7. Names (or words) are often thought to reference things (objects). What thing does each of the following name reference: father, mother, apple, car, elephant, seven, ouch, fire, equality.
8. What is the pattern (syntax) for naming objects in Java?
9. Write Java statements to name and create each of the following:
   1. An integer called age referring to your age.
   2. A character called initial referring to the first letter of your name.
   3. A text string called myName referring to your name.
   4. An integer called doubleMyAge referring to twice your age.
   5. A boolean called canVote referring to whether or not you are old enough to vote.
   6. An integer called lengthOfMyName referring to the number of characters in your name.
10. Suppose the following bindings have been set up for you:

    int foo = 11;
    double temp = 34.2;
    String greeting = "Hello";
    boolean isRaining = false;


    What are the values and types of each of the following expressions? If there is a syntactic or semantic error, say so. Use the interpreter to check your answers.

    foo / 5
    foo % 3
    foo + 2 * 4
    greeting * foo
    greeting + foo
    greeting.length()
    greeting.length() isRaining
    greeting.toLowerCase()
    temp * 2
    temp ( temp
    temp + foo


11. Using ArrayLists. Using the Java API. Use the Java API to learn about the interface supported by ArrayLists. Use the interpreter to experiment with arraylists by creating, adding, removing, and sending other messages to them. Use an ArrayList to keep a list of the names of your family members, or the cabinet of the White house.
12. Using the graphics package provided with this text and an interpreter, write expressions that result in the drawing of a house.
13. Define the following terms (with respect to programming in Java): type, expression, name, operator, message, method, interface, class.

Defining Simple Classes

1. Type in the BankAccount class given in the text. Extend the class to provide a full set of features that a real BankAccount might support.
2. Create a Point class to be used to represent two dimensional points. The class should have two data members: x and y which are both coordinates. It should provide (at least) methods for printing, adding, subtracting, scaling, and determining the distance between two points.
3. Modify the above class definition to use a polar representation (angle and radius) of points.
4. Using the graphics package provided with this text and an interpreter, create a Pen class. A Pen object has an X and Y coordinate and knows the graphics window it lives in. Finally, it also knows whether it is in the up or down state. It should respond to (at least) the following methods: penUp(), penDown(), turn(int degrees), move(int distance). When the pen is in the "down" state, and asked to move, it should draw a line on the graphics window.

Conditionals and Iteration

1. What is the pattern (syntax) for a conditional statement in Java?
2. Using the interpreter, write conditional (if) statements in Java that do the following:
   1. Check if a number is even, printing "Even!" if so, "Odd!" if not.
   2. Check if a number is bigger than 42 and incrementing it by 10 if so, and doing nothing if not.
   3. Decide a temperature description. The goal is to set a String called description to some text that describes the weather based on the temperature. If the temperature is less than 32 it is "Freezing", if it is between 32 and 50 it is "Cold", if it is between 50 and 70 it is "Cool", if it is between 70 and 90 it is "Just Right", and above 90 is "Too hot."
3. What is the pattern (syntax) for a loop in Java?
4. Find 5 examples of iteration from real life. Express each of them as precisely as possible.
5. Using the interpreter, write loops that do the following:
   1. Print your name 10 times.
   2. Print the numbers from 1 to 10.
   3. Print odd numbers from 1 to 30.
   4. Print the powers of 2 from 2^0 to 2^30.
   5. Reads integers from the user and sums them until the user enters a negative number.
   6. Checks if a number is prime. Remember, a number is prime if it can only be divided by one or itself.

Building a System

1. Create a Student class. It should have (at least) a student name, age, student ID number, and an ArrayList called transcript.
2. Create a Course class. It should have (at least) a course name, description, credit hours.
3. Create a Grade class. It should have (at least) a course grade, date taken, and a reference to a Course object.
4. Create a simple application for representing students, courses, and their grades, which uses the above classes.
5. The above exercise provided you with the basic classes and interfaces that you would implement to build a student database system. This exercise asks you to start from scratch. Choose a real-world domain, such as banking, cooking, shopping, inventory management, university administration, weather reporting. Perform a basic domain analysis of your chosen domain. You ought to be able to extract the classes and methods that form the interfaces between those classes. Share your analysis with another student and discuss its weaknesses and strengths.
